FORD and Mustang Smog System

Smog pump



Black fan

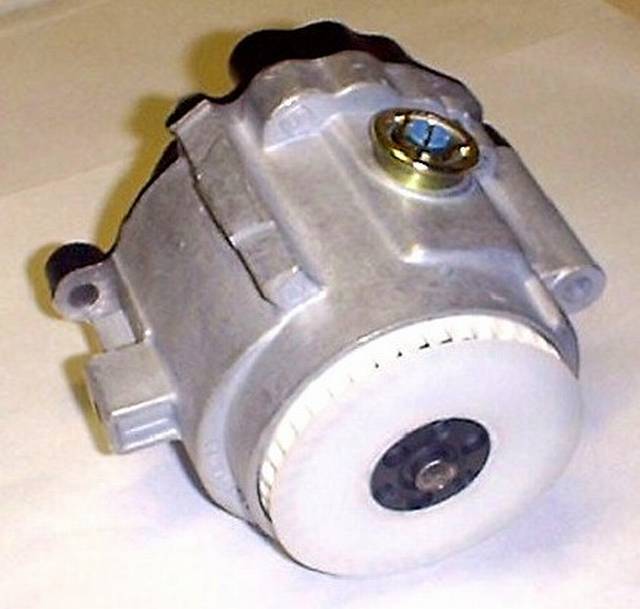

428 Smog pump with white fan

Mustang428 CJ SCJ

69-70 Mustang 428CJ



white fan

BOSS 302 Smog pump with white fan

Boss 302

69-70 BOSS 302 Mustang



white fan

Smog Setup

Mustang

67 289 Small Block



Pulley C7ZE-9B447-A

Pump housing 5696856

Pump filter to pump - hose C6OE-9B458-F

Bypass Canister C6OE-C - L3554

Bypass Canister bracket C6OE-D

Pump/Alt bracket C7OE-9B450-A

Pump adjuster bracket C6OE-9B452-A

Bypass to ? - hose C7ZE-9B466-A

Tee to check valve - hose C7ZE-9H534-A

Tee to check valve - hose C6OE-9H548-F

Smog Setup

Mustang

68 302 Small Block and J code





Smog Setup

Boss 429

BOSS 429 smog setup



428 smog tube

Mustang428 CJ SCJ

69-70 Mustang 428



Driver side

FE smog tube

FE



driver is non/428CJ

passenger also used on 428CJ

Smog bracket

No PN found



70+ 429 Mustang Torino

Smog pump mount bracket







C6AZ-9B471-A

Smog Ferrule

C8AE-9B289-A

? Smog canister

C8AE-9C486-A

428 CJ SCJ

68-70 428 CJ Smog canister bracket

C8OE-9B289-C

428 CJ SCJ

68-70 428 CJ Smog canister

D0ZE-9C486-A

Boss 302

70 Boss 302

Smog canister bracket

Misc smog system articles

1966 Thermactor exhaust system

Article from Ford Shop Tips dated nov 65 explaining 1966 Thermactor smog system

Application

legend

     Shelby  Mustang  289 HIPO  428 CJ SCJ  Boss 429  Boss 302  427
