FORD and Mustang Cylinder Heads   (6090)

5752143

59 332 352



Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

70cc

C0AE-6090-C

60 352



Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

73cc

C0AE-6090-D

60 352HP

61-62 390HP

Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

59.7cc

C1AE-6090-A

61-63 352 390

Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

71cc

C1SE-6090-A

61 390 Thunderbird

61 352

Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

71cc

C2SE-6090-A

62-63 390 6v T-birds

Late 62 390HP w/flat-top pistons

Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

65.5cc

C2SE-6090-B

early 62 406 4v & 6v

Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

62.5cc

C2SE-6090-C

late 62 - 63 406 4v

62 early 63 406 6v



Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

64.0cc

C3AE-6090-C

Unconfirmed Application. Information may or may not be complete or accuratelate 63 390 (72cc combustion chamber) ( High altitude DSO has 68cc combustion chamber)



Valves 2.02 / 1.55"

In port 2.34 x 1.34

Ex port 1.84 x 1.28



wo/Spring cups



Unconfirmed Application. Information may or may not be complete or accuratelate 63 406 6v

Unconfirmed Application. Information may or may not be complete or accurate62 early 63 406 6v



Valves 2.02 / 1.64"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

56.4cc



w/Spring cups

C3AE-6090-D

427

early 63 427 low riser

FE



Valves 2.02 / 1.64"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

64.0cc

C3AE-F

Unconfirmed Application. Information may or may not be complete or accurate63-64 289



Valves 1.67, 1.45

54.5cc

C3AE-6090-G

427

late 63 427 Low riser



Valves 2.08 / 1.64"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

72.8cc

C3AE-6090-H

427

late 63 427 Low riser



Valves 2.08 / 1.64"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

72.8cc

C3AE-6090-J



427

63 FE

64-65 427 Low riser



Valves 2.08 / 1.64"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

72.8cc

C3AE-6090-K

427

63 427 High riser



Valves 2.18 / 1.72"

In port 2.78 x 1.38

Ex port 1.86 x 1.30

73.2cc

C3OE

289 HIPO

Unconfirmed Application. Information may or may not be complete or accurate63 289 HiPo



Screw in Studs

Valves 1.67, 1.45

49.2cc

C3OE-B

Unconfirmed Application. Information may or may not be complete or accurate63 260

Valves 1.59, 1.39

54.5cc

289 Cylinder heads
C3OE-E

Unconfirmed Application. Information may or may not be complete or accurate63-64 289



Valves 1.67, 1.45

54.5cc

C3OE-F

Unconfirmed Application. Information may or may not be complete or accurate63-64 289



Valves 1.67, 1.45

54.5cc

C4AE-C

Unconfirmed Application. Information may or may not be complete or accurate64 289



Valves 1.67, 1.45

54.5cc

C4AE-6090-F



427

Confirmed Application. Information has been double checked with at least a second source64-69 427 High riser



Valves 2.18 / 1.72"

In port 2.78 x 1.38

Ex port 1.86 x 1.30

73.2cc

C4AE-6049-F

C4AE-G

C4AE-6090-G

64

FE Big Block



Valves 2.02, 1.55

In port size  2.34X1.34

Ex port size  1.84X1.28

C4OE-A

Unknown or incomplete Application. At best, the information listed is an educated guess64 289





C4OE-B

Mustang289 HIPO

Unconfirmed Application. Information may or may not be complete or accurateearly 64 289 HiPo



Screw in Studs

Valves 1.67, 1.45

49.2cc

C5AE-6090-F

427

Unconfirmed Application. Information may or may not be complete or accurate65-67 427 Medium riser

Valves 2.18 / 1.72"

In port 2.06 x 1.38

Ex port 1.78 x 1.30

88.cc

C5AZ-6049-C

C5AE-6090-H

PROCESS-FD1

427

427 aluminum heads from Shelby GT40 race program

Aluminum

C5OE-A

Mustang289 HIPOShelby

Unconfirmed Application. Information may or may not be complete or accurate65-67 289 HiPo Mustang Shelby



Screw in studs

Valves 1.78, 1.45

54.5cc

C7ZZ-6049-C

C6AE-AC

427

Unconfirmed Application. Information may or may not be complete or accurate427 SOHC



C6AE-R

C6AE-6090-R

66 FE Big Block



Valves 2.02, 1.55

Int port   2.34 X 1.34

Exh port   1.84 X 1.28

427 heads

C6FE-6090-A

289 GT40



C6OE-C

Unconfirmed Application. Information may or may not be complete or accurate65-67 289



Valves 1.67, 1.45

54.5cc

C6OE-E

Unconfirmed Application. Information may or may not be complete or accurate65-67 289



Valves 1.67, 1.45

54.5cc

C6OE-M

Unconfirmed Application. Information may or may not be complete or accurate65-67 289



Valves 1.67, 1.45

54.5cc

C6OE-M

Unconfirmed Application. Information may or may not be complete or accurate66-? 289 w/CE



Valves 1.67, 1.45

54.5cc

with california Emssion

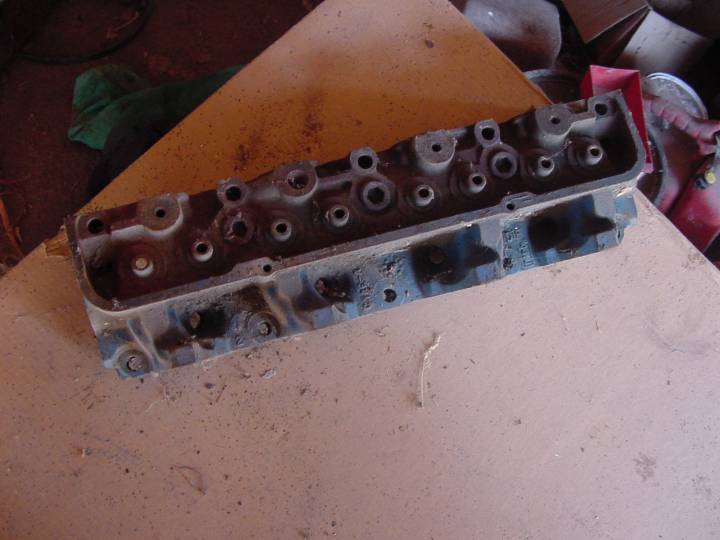

C7AE-A

Unconfirmed Application. Information may or may not be complete or accurate67 390 Mustang

Unconfirmed Application. Information may or may not be complete or accurate67 428 Shelby GT500



16 bolt exhaust pattern

16 bolt pattern

Mustang

C7AE-A

Unconfirmed Application. Information may or may not be complete or accurate67 390 Mustang

Unconfirmed Application. Information may or may not be complete or accurate67 428 Shelby GT500



14 bolt exhaust pattern



14 bolt pattern

Mustang

C7AE-A

Unconfirmed Application. Information may or may not be complete or accurate67 390 - 428 Ford full size



8 bolt exhaust pattern



8 bolt pattern

C7OE-A

Unconfirmed Application. Information may or may not be complete or accurate67 289



Valves 1.67, 1.45

54.5cc

C7OE-B

Unconfirmed Application. Information may or may not be complete or accurate67 289



Valves 1.67, 1.45

54.5cc



C7OE-C

Unconfirmed Application. Information may or may not be complete or accurate68 - 70 302 Valves 1.78, 1.45

Unconfirmed Application. Information may or may not be complete or accurate67 289 Valves 1.67, 1.45



C7OE-D

Unconfirmed Application. Information may or may not be complete or accurate68-70 302



Valves 1.78, 1.45

63cc

C7OE-6090-K

427

Unconfirmed Application. Information may or may not be complete or accurate67+ 427 Tunnel Port





Valves 2.25 / 1.72"

In port 2.17 x 2.34

Ex port 1.78 x 1.30

88.0cc

C8AX-6049-A

C7ZE-A

289 HIPO

Unconfirmed Application. Information may or may not be complete or accurate67 289 Hipo



Valves 1.67, 1.45

54.5cc

C8AE-F

68 FE




C8AE-H

Unconfirmed Application. Information may or may not be complete or accurate68-70 390 - 428 Full size

8 bolt exhaust pattern

8 bolt exhaust

C8AE-H

Unconfirmed Application. Information may or may not be complete or accurate68-69 390 Ford Mustang

Unconfirmed Application. Information may or may not be complete or accurate68 428 GT500

14 bolt exhaust pattern

14 bolt exhaust

Mustang

C8AE-6090-J

427

Unconfirmed Application. Information may or may not be complete or accurate68 427 Low riser Cougar

Unconfirmed Application. Information may or may not be complete or accurate68 early 428CJ Mustang

Valves 2.08 / 1.65"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

72.7cc

C8FE-6090-A

Unconfirmed Application. Information may or may not be complete or accurate68 302 Tunnel Port



with Shaft Rockers

Race

C8OE-D

Unconfirmed Application. Information may or may not be complete or accurate68 289



Valves 1.67, 1.45

63cc

2A cast in the valve cover corner

C8OE-A

MustangShelby

Unconfirmed Application. Information may or may not be complete or accurate68 302-4v Mustang

Unconfirmed Application. Information may or may not be complete or accurate68 Shelby GT-350 4sp



4V casting

Used only on 68 J code

C8OE-F

MustangShelby

Unconfirmed Application. Information may or may not be complete or accurate68 302-4v Mustang

Unconfirmed Application. Information may or may not be complete or accurate68 Shelby GT-350 Auto



4V casting

Valves 1.78, 1.45

53.5cc

Used only on 68 J code

C8OE-F

MustangShelby

Unconfirmed Application. Information may or may not be complete or accurate68 302-4v Mustang

Unconfirmed Application. Information may or may not be complete or accurate68 Shelby GT-350 Auto



4V casting

Valves 1.78, 1.45

w/ Thermactor Emissions

53.5cc

Used only on 68 J code

C8OE-6090-H

14 bolt exhaust

Mustang

Unconfirmed Application. Information may or may not be complete or accurate68-69 390 GT Mustang

Confirmed Application. Information has been double checked with at least a second sourceearly 68 428CJ

Valves 2.08 / 1.65"

In port (1.94 or 2.34) x 1.34

Ex port 1.84 x 1.28

72.8cc

C8OE-6090-N is known as the correct 428 CJ heads. Period documentation often shows C8OE-6090-H heads as also being correct for CJ application.

C8OZ-6049-J

C8OE-J

Unconfirmed Application. Information may or may not be complete or accurate68-70 302



Valves 1.78, 1.45

C8OE-K

Unconfirmed Application. Information may or may not be complete or accurate68-70 302



Valves 1.78, 1.45

C8OE-L

Unconfirmed Application. Information may or may not be complete or accurate68-70 302

Unconfirmed Application. Information may or may not be complete or accurate68 289

Valves 1.78, 1.45

63cc

C8OE-M

Unconfirmed Application. Information may or may not be complete or accurate68-70 302

Unconfirmed Application. Information may or may not be complete or accurate68 289

Valves 1.78, 1.45

63cc

C8OE-6090-N

428 CJ SCJShelby

Confirmed Application. Information has been double checked with at least a second source68-70 428CJ & SCJ

Confirmed Application. Information has been double checked with at least a second source68 Shelby GT-500KR

Confirmed Application. Information has been double checked with at least a second source69-70 Shelby GT-500

 with thermactor

Valves 2.08 / 1.65"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

72.8cc

16 bolt exhaust pattern

Ford Service Part Number ID C8OZ-6049-K

428 CJ heads Cobra jet heads
C8VE-E

Unconfirmed Application. Information may or may not be complete or accurate68 429

Non CJ

C8WE-6090-A

427

68 427 Low riser Cougar & Mustang to 2-1-68

Valves 2.08 / 1.65"

In port 2.34 x 1.34

Ex port 1.84 x 1.28

72.7cc

C8ZE-B

Unconfirmed Application. Information may or may not be complete or accurate289 302 HP Hipo service replacement head

Valves 1.78, 1.45

Combustion chamber 53.5cc

Double Dot 289 HP Casting

Pushrod guides

3/8" screw in studs

C9AE-A

Boss 429

Unconfirmed Application. Information may or may not be complete or accurate69-70 BOSS 429 heads

Hemi combustion chamber

Aluminum

In port 2.36 x 2.36

Ex port 2.04 x 1.68

Valves 2.28 / 1.90"

C9OE-A

Unconfirmed Application. Information may or may not be complete or accurate69+ 351W



Ford Service Part Number ID C9OZ-6049-A

C9OE-B

Shelby

Unconfirmed Application. Information may or may not be complete or accurate69+ 351W

Unconfirmed Application. Information may or may not be complete or accurate69-70 Shelby GT-350

Valves 1.84, 1.54

60.4cc

Ford Service Part Number ID C9OZ-6049-A

C9OE-D

Unconfirmed Application. Information may or may not be complete or accurate69+ 351W

Valves 1.84, 1.54

60.4cc

Ford Service Part Number ID C9OZ-6049-A

C9OE-E

Unconfirmed Application. Information may or may not be complete or accurate69+ 302

2v casting

C9OE-F

Unconfirmed Application. Information may or may not be complete or accurate69+ 351W



Ford Service Part Number ID C9OZ-6049-A

C9OE-G

Unconfirmed Application. Information may or may not be complete or accurate69+ 351W


C9OE-J

Unconfirmed Application. Information may or may not be complete or accurate69+ 351W



Ford Service Part Number ID C9OZ-6049-A

C9VE-A

69 - 70 429

Non CJ

C9ZE-6090-A

MustangBoss 302

Unconfirmed Application. Information may or may not be complete or accurate69 Boss 302 Mustang



Valves 2.23, 1.72

63cc  (Closed chamber)

In port 2.60 x 1.75

Ex port 2.00 x 1.74

C9ZE-6090-C

MustangBoss 302

Unconfirmed Application. Information may or may not be complete or accurate69 Boss 302 Mustang



Valves 2.23, 1.72

63cc  (Closed chamber)

In port 2.60 x 1.75

Ex port 2.00 x 1.74

D0AE-AA

Boss 429

Unconfirmed Application. Information may or may not be complete or accurate70 BOSS 429



Valves 2.38, 1.90

In port 2.36 x 2.36

Ex port 2.04 x 1.68

Ford Service Part Number ID D0AZ-6049-C

D0AE-6090-E

Confirmed Application. Information has been double checked with at least a second source70 351C 2v

2V heads

In Valve 1.946" or 2.046"

Ex Valve 1.6495" or 1.6595"

78.2cc

In port 2.02 x 1.40

Ex port 1.85 x 1.39

Ford Service Part Number ID D0AZ-6049-A

Ford Service Part Number ID D1AZ-6049-D

D0AE-6090-G



Unconfirmed Application. Information may or may not be complete or accurate70-71 351C



4V heads

Valves 2.195, 1.715

62.8cc (Closed Chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D0AZ-6049-B

D0AE-6090-J

Confirmed Application. Information has been double checked with at least a second source70 351C 2v

2V heads

In Valve 1.946" or 2.046"

Ex Valve 1.6495" or 1.6595"

78.2cc

In port 2.02 x 1.40

Ex port 1.85 x 1.39

Ford Service Part Number ID D0AZ-6049-A

Ford Service Part Number ID D1AZ-6049-D

D0AE-6090-M



Unconfirmed Application. Information may or may not be complete or accurate70-71 351C

4V heads

Valves 2.195, 1.715

62.8cc (Closed Chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D0AZ-6049-B

D0AE-6090-N

D0AE-N



Unconfirmed Application. Information may or may not be complete or accurate70-71 351C

4V heads

Valves 2.195, 1.715

62.8cc (Closed Chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D0AZ-6049-B

D0AE-6090-R



Unconfirmed Application. Information may or may not be complete or accurate70-71 351C

4V heads

Valves 2.195, 1.715

62.8cc  (Closed Chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D0AZ-6049-B

D0OE-B

Unconfirmed Application. Information may or may not be complete or accurate70 302



Valves 1.78, 1.45

58.2cc

D0OE-C

Unconfirmed Application. Information may or may not be complete or accurate70+ 351W

Valves 1.84, 1.54

60.4cc

Ford Service Part Number ID D1OZ-6049-C

D0OE-6090-R

Confirmed Application. Information has been double checked with at least a second source70-71 429CJ & SCJ

Valves 2.24, 1.72

73.5cc

Requires guide plates

SCJ w/Adjustable Rockers

In port 2.86 x 2.12

Ex port 2.24 x 1.32

Ford Service Part Number ID D0OZ-6049-H

DOOE 429 Cobra jet heads 429 CJ cylinder heads
D0VE-A

Unknown or incomplete Application. At best, the information listed is an educated guess429



D0VE-C

Unconfirmed Application. Information may or may not be complete or accurate70-71 429 460

Valves 2.09, 1.65

75.8cc

D0ZE-6090-A

MustangBoss 302

Confirmed Application. Information has been double checked with at least a second source70 Boss 302 Mustang



Valves 2.19, 1.72

58cc  (Closed chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

another casting of this head is D0ZE-A

Ford Service Part Number ID D0ZZ-6049-A

D0ZE-A

MustangBoss 302

Confirmed Application. Information has been double checked with at least a second source70 Boss 302 Mustang



Valves 2.19, 1.72

58cc  (Closed chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

another casting of this head is D0ZE-6090-A

Ford Service Part Number ID D0ZZ-6049-A

D0ZE-6090-B

MustangBoss 302

Confirmed Application. Information has been double checked with at least a second source70 Boss 302 Mustang



Valves 2.19, 1.72

58cc  (Closed chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D0ZZ-6049-A

D1AE-6090-AA

Unconfirmed Application. Information may or may not be complete or accurate71-74 351C 2v

2V heads

Valves 2.04, 1.65

64cc

In port 2.02 x 1.65

Ex port 1.84 x 1.38

Ford Service Part Number ID D1AZ-6049-A

D1AE-CB

Unconfirmed Application. Information may or may not be complete or accurate71-74 351C 2v

2V heads

Valves 2.04, 1.65

64cc

In port 2.02 x 1.65

Ex port 1.84 x 1.38

Ford Service Part Number ID D1AZ-6049-A

D1AE-GA

Confirmed Application. Information has been double checked with at least a second source71 351C Mustang Torino



Valves 2.19, 1.71

64cc  (Closed chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D1AZ-6049-B

D1AE-GA

BOSS 351 Mustang

Confirmed Application. Information has been double checked with at least a second source71 B0SS 351 Mustang



Follow the discussion on the B2 forum

Screw in Studs w/Guide plates

Valves 2.19, 1.71

75.4cc  (Closed chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D1ZZ-6049-B

D1OE-6090-AB

Unconfirmed Application. Information may or may not be complete or accurate71 302



Ford Service Part Number ID D1OZ-6049-A

D1ZE-6090-AA

Boss 302 service replacement head



D1ZE-DA

Unknown or incomplete Application. At best, the information listed is an educated guess71-72 351CJ

Unconfirmed Application. Information may or may not be complete or accurate71 351C

Valves 2.19, 1.71

73-76cc  (Open chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D1ZZ-6049-C

D1ZE-GT

Unknown or incomplete Application. At best, the information listed is an educated guess71 351CJ

In port 2.50 x 1.75

Ex port 2.00 x 1.74



D2OE-AB

Unconfirmed Application. Information may or may not be complete or accurate72 460 Police Interceptor




D2OE-BA

Unconfirmed Application. Information may or may not be complete or accurate72-74 302



Valves 1.78, 1.45

58.2cc

Ford Service Part Number ID D2OZ-6049-B

D2ZE-A

Unconfirmed Application. Information may or may not be complete or accurate72 351 HO



Valves 2.19, 1.71

75cc  (Open chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D2ZZ-6049-A

D3ZE-AA

Unconfirmed Application. Information may or may not be complete or accurate73-74 351CJ



4V heads

Valves 2.04, 1.66

75.4cc  (Open chamber)

In port 2.50 x 1.75

Ex port 2.00 x 1.74

Ford Service Part Number ID D3ZZ-6049-A

XE-145488

Unconfirmed Application. Information may or may not be complete or accurate429 Police Interceptor



Aluminum

Experimental Part

XE-244963

Unconfirmed Application. Information may or may not be complete or accurateExperimental Boss 302 style heads



Aluminum

Experimental Part

for use w/ Special Intake

Gurney Eagle

Unconfirmed Application. Information may or may not be complete or accurateGurney Eagle race heads





Application

legend

  Shelby Mustang 289 HIPO 428 CJ SCJ Boss 429 BOSS 351 Mustang Boss 302 427

Confirmed Application. Information has been double checked with at least a second source Confirmed App

Unconfirmed Application. Information may or may not be complete or accurate Unconfirmed App

Unknown or incomplete Application. At best, the information listed is an educated guess Unknown App

FORD, Mustang, shelby, Cougar, Fairlane, Torino, Galaxie, falcon and Mercury Cylinder Heads, enginering number 6090, C3AE-F, C3OE 289 HiPo Screw in Studs, C3OE 289, C3OE-E, C3OE-F, C4AE-C, C4AE-G, C4AE-6090-G FE Big Block, C4OE, C4OE-B 63 289 HiPo, C5AE-E 65 -67 Ford Mustang Shelby 289 HiPo, C6AE-R, C6AE-6090-R, C5OE-A 65-67 Ford Mustang Shelby, C6OE-C, C6OE-E, C6OE-M, C7AE-A 8 bolt pattern 16 bolt pattern, C7OE-A, C7OE-B, C7OE-C, C7OE-D, C7OZ-B, C7ZE-A, C8AE-J 68-70 302, C8OE-J, C8OE-K, C8OE-D, C8OE-L, C8OE-M, C8OE 68 Ford Mustang Shelby 4V casting Used only in 68 J code, C8OE-A 68 Ford Mustang Shelby 302 4V casting with thermactor, C8OE-F 68 Ford Mustang Shelby 302,C8AE-H 68-70 Ford 390 68 428 GT500, C8OE-6090-N 68-70 Ford Mustang 428CJ SCJ with thermactor, C9OE-B, C9OE-D, C9ZE-6090-A 69 Ford Mustang Boss 302 Valves 2.23, 1.72 63cc, C9ZE-6090-C, 69 Ford Mustang Boss 302, D0AE-6090-G 70 Ford Mustang 351C, D0AE-6090-M, D0AE-6090-N, D0AE-6090-R, D0OE-B, D0OE-C, D0OE-D, D0OE-6090-R 70-71 Mustang Torino 429 CJ SCJ Super Cobra Jet, D0OZ-C, D0ZE-6090-A 70 Ford Mustang Boss 302 Valves 2.19, 1.72 58cc, D0ZE-6090-B 70 Boss 302, D1TZ-A, D2OE-BA
