FORD Crank Pulleys      ( Ford Service Part Number ID 6312 )

C1AE-6312-A

Ok65-68 390 Thunderbird

Ok65-68 352 390 Ford(40amp_gen 42·43·53·60amp_alt -exc/AC)

Ok65 390 PC

Ok65 390 Ford (60amp, PS&XC)

Ok66 390 Thunderbird(TE)-exc/AC

Ok66-68 428 Ford (40·52·53·60amp)-exc_w/AC

Ok66-68 428 Thunderbird

Ok66-68 428 Thunderbird (TE) exc/AC

Ok66-68 390 Fairlane&GT, Mustang (2v&4v)-53_55amp, (TE)-exc/AC

Ok67 390 Mustang (TE, PS)

Ok67 390 Mustang (C6, TE, PS, XC, AC)

Ok67 390 Mustang (ST, TE, XC, PS, AC)

Ok67 390 Ford (2v.4v),C6, CM, Imco, PS, 53·55·65amp.(exc/AC)

Certified67 Shelby GT500 wo/AC

2 grooves

Ford Service Part Number ID C1AZ-6A312-C

C1AE-6A301-B

Ok65-68 352 390 Ford(PS)-w_wo/XC from 1-feb-64

Ok65-66 390 Thunderbird (wo/AC or TE)

Ok65-68 390 Fairlane&GT(2v 4v)-38amp, PS-not_used_Calif

Ok66 428 Thunderbird (wo/AC_or_wo/TE)

Ok67 390 Mustang (w/PS)

Ok67 390 Ford (2v 4v), C6, CM, Imco, 42amp, PS(exc/AC)

Ok67 428 Thunderbird (TE)

1 groove

6 9/16" diameter

Ford Service Part Number ID C1AZ-6A312-D

C1AE-6A312-D

?FE Crank Pulley
Ok67 390 GT

1 groove

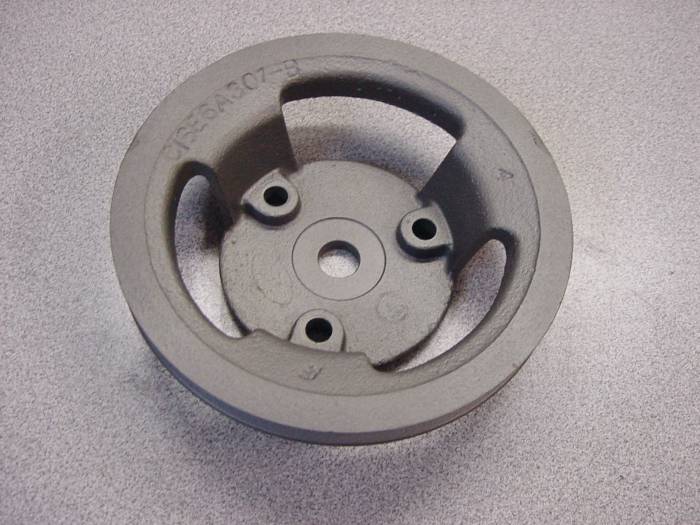

C1SE-6A301-B

Ok 61-64 390 Thunderbird w/PS wo/AC

Ok 65-67 390 Thunderbird w/PS

1 groove

Cast iron

Ford Service Part Number ID C1SZ-6A312-A

C2OE-6312-C

?Small Block Crank Pulley

3 grooves

5 7/8" diameter

C3OE-6312-C

OkSmall Block Crank Pulley

4 grooves

6 1/8" diameter

Overall depth 3 5/16

C4AE-6316-A

Ok65-67 352 390 Fairlane& GT, Mustang, Tbird (2v_4v)

1 pc Balancer & pulley

(see Balancer section)

1 groove

Sheave 6 19/32" dia

Ford Service Part Number ID C3AZ-6312-E

C4AE-6316-B

Ok65-67 352 390 Fairlane& GT, Mustang, Tbird (2v_4v)

1 pc Balancer & pulley

(see Balancer section)

1 groove

Sheave 6 19/32" dia

Ford Service Part Number ID C3AZ-6312-E

C4AE-6316-E

427

Ok65-67 427

1 pc Balancer & pulley

(see Balancer section)

1 groove

Sheave 6 5/8" dia

Ford Service Part Number ID C3AZ-6312-F

?

Ok65-68 390 Ford, Fairlane, Mustang, PC (w/AC w_or-wo/PS)

Ok67 390 428 Thunderbird (TE, w/PS)

Ok66 428 Pc (w/AC, w_or_wo/PS)

3 grooves

Ford Service Part Number ID C4AZ-6312-B

No Image

C5AE-A

C5AE-6312-A

Ok65-67 289 Ford (std, prod-X/C)

Ok65-67 289 Fairlane (2v & 4v-PF)-std_prod. -XC

Ok65-67 289 Mustang, Falcon (2v & 4v-PF)-std_prod

Ok65-67 289 Mustang (2v & 4v-PF)-XC wo/PS

Ok65 289 Hipo Fairlane (4v)-std_prod.-40amp

Ok65 289 Hipo Mustang (4v)-std_prod. alt

Ok66-67 289 Falcon (2v, 4v)-std_steer., R/A cover em/re-exc. AC

Ok66-67 289 Fairlane (38 amp alt)-std_ steer., R/A cover em/re-exc. AC

Ok66-68 289 302 Bronco (exc/TE)

1 grooves

Dia 6 23/64 "

uses 3/8" belt

Offset 2 3/16

Ford Service Part Number ID C5AZ-6312-B

C5AE-B

C5AE-6312-B

Ok65-68 289 Ford (AC TE&52_or_53amp)

Ok65 289 Fairlane (PS&53_or_55amp)t

Ok65 289 Ford  (53, 55amp)

Ok65-68 289 Falcon (2v 4v)-AC

Ok66-68 289 Fairlane(AC)

Ok66-68 289 Mustang (2v, TE, AC, PS)

Ok66-67 289 Mustang (4v,-PF, C4, TE, AC)

Ok66-67 289 Mustang (4v,-PF, 3sp_4sp, TE, PS, AC, XC)

Ok66-68 289 Mustang (2v C4, 3sp, AC, exc/TE)

Ok66-67 289 Mustang (4v-PF, C4, AC, PS, exc/TE)

Ok67-68 289 Ford, Fairlane, Falcon (2v_4v-PF, XC, PS, 53·55·58amp, exc/TE

Ok68 302 Ford, Fairlane, Mustang, Falcon

3 grooves

Dia outer 7 19/64"

Dia inner 6 5/8"

Overall depth to bolt flange 3.79"

Uses one 1/2" belt & two 3/8" belts

Ford Service Part Number ID C5AZ-6312-D Replaced by

C8OZ-6A312-B (to 74)

C5AE-6312-C

?289 Crank Pulley



2 grooves

6 3/8" diameter

Overall depth : 3.22", (to bolt flange 3.08")
3 bolts

C5AE-D

Ok65-68 352 390 Ford, Fairlane & GT, Thunderbird(w/AC. TE w_or_wo/PS)

Ok67-68 390 Thunderbird(PS)-exc/TE

Ok66-68 428 Ford, Thunderbird(wAC. TE w_or_wo/PS)

Ok67 428 Thunderbird(PS)-exc/TE

3 grooves

Diameter : 7.687"
Overall depth : 2.48"

Ford Service Part Number ID C4SZ-6A312-B

C5TE-6312-A

?67 352 390 Ford(2v& 4v)-CM, C6, Imco 53·55·65amp (exc/PS & exc/AC)

?66-67 289 Ford, Fairlane, Mustang, Falcon (2v·4v-PF-std_steer-53-55amp-exc/TE)

1 groove

Ford Service Part Number ID C5TZ-6A312-A

C6AE-6316-A

Ok66-69 390 HiPerf Fairlane, Mustang

1 pc Balancer & pulley

(see Balancer section

1 groove

Ford Service Part Number ID C6AZ-6312-A

No Image
C6OE-6312-A

Ok289 app been replaced w C6TE-6A312-D

2 grooves

Diameter 6 19/32

Offset 2 3/4

C6TE-6A312-D

289 HIPO

Ok66-67 289 Ford, Fairlane, Mustang, Falcon, Bronco (2v·4v-PF)-3sp_4sp

Ok66-68 289 Mustang, Falcon (4v-PF)

Ok66-67 289 Hipo Mustang (4v, PS)-TE-before_3-jan-67

Ok66-67 289 Ford, Fairlane, Mustang, Falcon (2v, C4)-exc/TE

Ok66-67 289 Ford, Fairlane, Mustang, Falcon, (2v, C4)-TE-before 11/14/66

Ok67 289 Hipo Mustang (4v)-TE-from/3-jan-67

Ok68 Bronco

2 grooves



Ford Service Part Number ID C6TZ-6A312-B

No Image

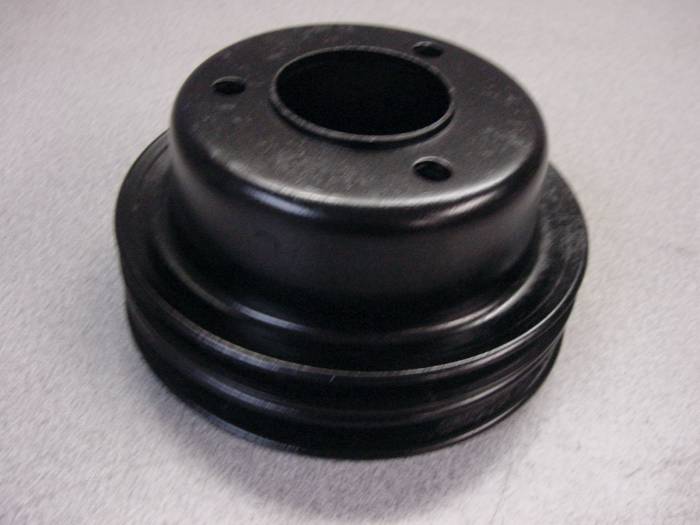

C7AE-6312-A

289 HIPO

Ok67 Fairlane, Mustang, Falcon (2v_4v-PF)-PS, 38amp, exc/TE

Ok67 Ford (PS, XC, 38amp)

Ok65-67 289 Ford, Fairlane (2v)-PS, PS&XC

Ok65-67 289 Fairlane (4v-PF)-PS, PS&XC

Ok65-67 289 Falcon (2v_4v-PF)-PS

Ok65-67 289 Fairlane, Mustang 289 Hipo (4v)-PS, PS&XC

Ok65-67 289 Mustang (2v_4v-PF)-PS, PS&XC

2 grooves

Dia 6 11/32"

3 1/64" Long

Uses one 1/2" belt & one 3/8" belt

Ford Service Part Number ID C5AZ-6312-E

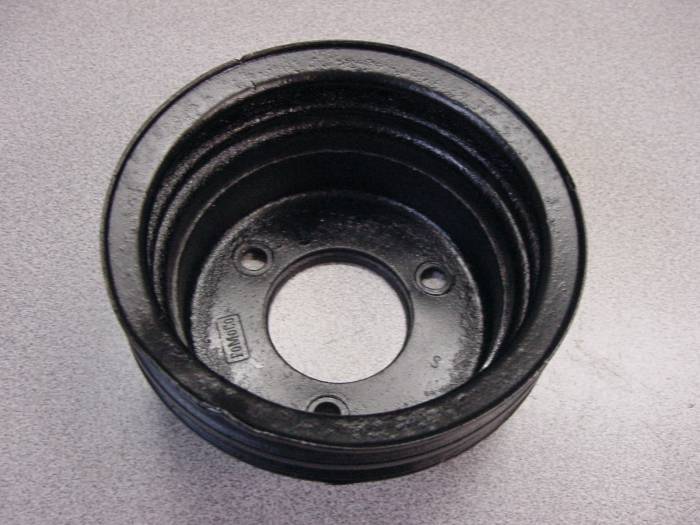

C7OE-6312-A

Ok289 application replaced w C8OE-6312-C

2 grooves

C7OE-6A312-C

Ok289 application replaced w C8OE-6312-C

1 grooves

Diameter : 6.125"
Overall depth : 2.20", (to flange 2.30")

C8AE-6312-A

Ok68 390 Ford Fairlane-GT, Mustang (4v)-AC

Ok68 390 Ford (2v)

Ok68 428 Ford PC-(AC)

3 grooves
Small groove 6 1/8" dia
Large grooves 7 1/4" dia

Ford Service Part Number ID C8AZ-6A312-A

C8AE-6312-B

Ok68 390 Ford, Fairlane, Mustang (2v PF)-AC

Ok71 390 Ford w/std_alt, wo/PS

Ok68 428 Ford (AC)

3 grooves

Diameter 7 13/16"

Overall depth 2 1/4"

Ford Service Part Number ID C8AZ-6A312-B

C8AE-6A312-B

Ok68 390 Ford, Fairlane&GT, Mustang (2v_4v)

Ok69 390 Ford, Fairlane&GT, Mustang&GT wo/PS & AC

Ok70 390 Ford std_alt wo/PS or AC

Ok68 428 Ford, PC

1 groove

6 3/4" dia

Overall depth .81"

uses 3/8" belt

Ford Service Part Number ID C8AZ-6A312-E

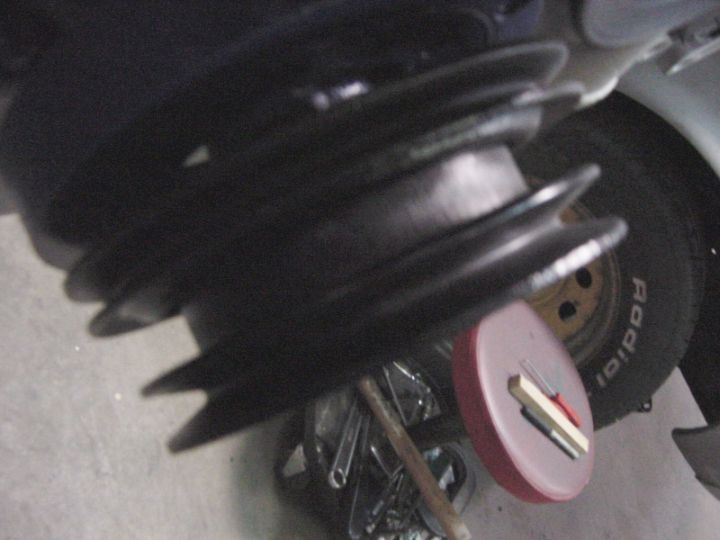

C8AE-6312-C

Ok68 390 Ford, Fairlane&GT, Mustang (2v_4v)-CM, PS

Ok69 390 Ford, Fairlane-GT, Mustang-GT -w/PS, std_alt

Ok70-71 390 Ford w/std_alt, w/PS

Ok68 428 Ford, PC (C6) PS

2 Grooves

Dia : 6.187", 6.815"
Overall depth : 2.31"

Ford Service Part Number ID C8AZ-6A312-C

C8AE-6312-D

428 CJ SCJ427

Ok68 390 Fairlane, Mustang (2v_4v)-ST-w_or_wo/PS

Ok69 390 Ford, Fairlane-GT, Mustang-GT -w_or_wo/PS-(exc/std_alt_or_AC)

Ok70 390 Ford w_or_wo/PS, wo/AC

Ok71 390 Ford(PC)-w/55_or_65amp

Ok68 427 Spec. Ford, Mustang (4v)-w_or_wo/PS

Ok68 428 Ford, PC (ST)w_or_wo/PS

Ok68 428CJ Fairlane, Mustang

Ok69-70 428 Ford, PC, Torino, Mustang(CJ)-w_or_wo/PS(exc AC)

3 grooves

for dual alt belts

6 21/32" dia outer

6 5/32" dia inner

Inner pulley belt 3/8"

Ford Service Part Number ID C8AZ-6A312-D

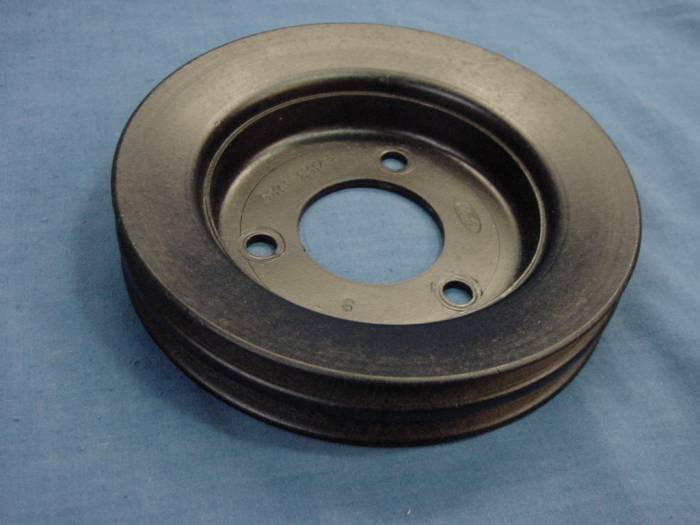

C8AE-6312-E

428 CJ SCJ

Ok390-428 app been Replaced with C8AE-6312-D



2 Grooves

for dual alt belts

Diameter 6 3/4"

Offset 1 5/16"

C8AE-6312-E
C8OE-6312-A

Ok68 289 Fairlane, Falcon (PS)

Ok65-67 289 Ford (std-prod, PS, XC, PS&XC, super-XC)

Ok65-67 289 Fairlane, Mustang (2v_4v-PF)-AC, PS

Ok65-67 289 Fairlane (2v_4v-PF)-XC

Ok65-67 289 Hipo Fairlane, Mustang (4v)-AC, PS, PS&AC

Ok65-67 289 Falcon (2v_4v-PF)-XC&AC, PS&XC, PS, AC

Ok66-67 289 Fairlane (PS, 55amp)

Ok66-67 289 Ford (PS, 53·55·60amp)

Ok68 302 Ford, Fairlane, Falcon (2v_4v)-PS

3 grooves

Ford Service Part Number ID C8OZ-6A312-A

C8OE-6312-B

Ok68 289 Fairlane, Mustang, Falcon (2v) PS, AC

Ok68 302 Fairlane, Mustang, Falcon (2v_4v)-PS, AC

3 grooves

7 3/8 " dia. Outer

96mm depth

Ford Service Part Number ID C8OZ-6A312-B

C8OE-6312-C

Boss 302

Ok68 289 Fairlane, Mustang, Falcon (2v) ST,  less-AC

Ok67 289 Ford, Fairlane, Mustang, Falcon (2v, C4)-TE    from 14-nov-66

Ok68 289 Ford, Fairlane, Mustang, Falcon -TE

Ok68 289 Fairlane, Mustang, Falcon (ST w/Imco)

Ok68 302 Fairlane, Mustang, Falcon (2v_4v) MT-less/AC

Ok68 302 Ford 55amp, MT Imco

Ok69 Boss 302 Mustang (4v)

Ok68 302 Ford, Fairlane, Mustang, Falcon -TE

Ok68 302 Pord, Fairlane, Mustang, Falcon -w/PS, MT, Imco

3 grooves

6 1/16 Diameter

Ford Service Part Number ID C8OZ-6A312-C

C8OE-6312-C

?Has same casting as the 3 groove C8OE-6312-C pulley but this one has only 1 groove.

1 grooves

6 1/16 Diameter



C9AE-6B319-A

Boss 429

Ok69-70 Boss 429 Mustang -w/PS

1 grooves

6" diameter

2 3/32" long

Ford Service Part Number ID C9AZ-6A312-D

No Image

C9AE-6312-B

?69 FE

3 grooves

8 7/8" dia. Outer

7 1/4" dia. Outer

2 1/4" total depth

Ford Service Part Number ID

C9AE-6312-D

Ok69 302 Ford (PC, Taxi)-w/AC from_3-sep-68

Ok69 351W Ford w/AC

3 grooves

Ford Service Part Number ID C9AZ-6A312-C

No Image
C9AE-6312-E

Ok69 302 Ford (PC, Taxi)-w/AC b4_3-sep-68

3 grooves

Ford Service Part Number ID C9AZ-6A312-A

No Image

C9OE-6312-C

Ok69 390 Ford, PC -w/AC

Ok69 390 Fairlane-GT, Mustang-GT -w/AC w_or_wo/PS

3 grooves

Ford Service Part Number ID C9OZ-6A312-E

No Image

C9OE-6312-D

428 CJ SCJ

Ok69-70 428 Ford, PC, Fairlane&Mustang(CJ)  (TE)-w/AC

Ok69 390 PC w/AC

3 grooves

7 5/32" dia inner

6 31/32" dia outer

Ford Service Part Number ID C9OZ-6A312-F

C9OE-6312-E

Ok69 302 Torino Mustang Falcon -w_o_wo/PS

Ok69 302 Ford -55·65amp, wo/PS

Ok69 302 Ford w_or_wo/PS

Ok69 351W wo/PS_or_AC

Ok69 351W 42amp, w/PS-wo/AC

2 grooves

Diameter : 6.125"
Overall depth : 2.83"

Ford Service Part Number ID C9OZ-6A312-B

C9OE-6312-G

?69 351

3 grooves

Ford Service Part Number ID D4UZ-6A312-A

No Image

C9SE-6312-B

Ok68-70 429 Thunderbird

Ok69 429 Ford w/PS

Ok69 429 Ford, PC 55·65amp

1 groove

6" diameter

use 1/2" belt

Ford Service Part Number ID C9SZ-6A312-A

C9ZE-6312-A

Ok69 250 Fairlane/Torino, Mustang -w/PS



1 groove
Diameter : 5 15/16"
Overall depth : 1 3/8"
Belt 3/8"

Ford Service Part Number ID

C9ZE-6312-B

Ok69 302 Torino, Mustang, Falcon -w/AC

Ok69 302 Ford -w/HangOn_AC

Ok69 351W w/AC-w_or_wo/PS

3 grooves

Ford Service Part Number ID C9ZZ-6A312-B

D0AE-6312-A

Ok70+ 429 Ford (exc/PC)-wo/AC

Ok70-71 429 Tbird w/PS

Ok70 429 Torino (exc/CJ)-wo/AC

Ok72 429 Torino wo/AC

Ok72 429 Tbird wo/AC

2 grooves crank pulley

Dia 6 45/64" & 8"

Ford Service Part Number ID D0AZ-6A312-A



D0AE-6312-C

Ok70-71 351-2V 351C Ford, Torino, Mustang, Cougar

Ok72-73 351-2V Ford, Torino, Mustang, Cougar

3 groove crank pulley

Dia 6 23/32",   7 31/32" and 8 13/32"

Overall depth : 3.09"

D0AE-6312-C3

Ok351 application replaced w D0OE-6312-C

3 groove crank pulley

Dia 6 23/32",   8" and 8 13/32"

D0AE-6312-D

Ok70-71 390 Ford w/AC

Ok71 390 Ford(PC) -w/AC

3 groove crank pulley

7 5/8" inner dia.

8 7/8" outer dia.

57mm depth

Ford Service Part Number ID D0AZ-6A312-D

D0OE-6312-A

?70-71 302 351C

1 groove

6 1/2" diameter

2 1/8" total depth

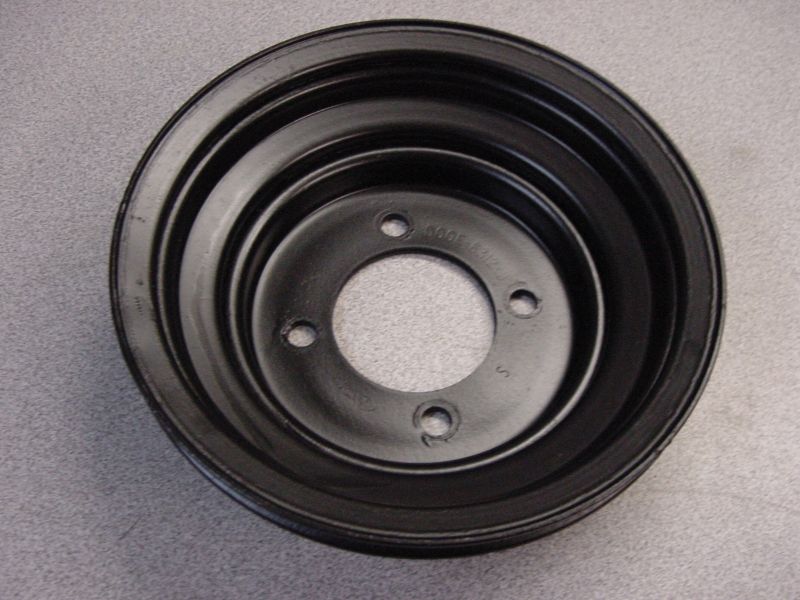

D0OE-6312-B

Ok70 302 Falcon w/PS

Ok71 302 Ford, Torino, Mustang w/55amp wo/PS

Ok71 302 Maverick w/55amp

Ok71 351W&C 2v·4v_ exc.CJ-w/idler_or_PS-wo/AC

Ok72 351W&C 2v-w/idler_or_PS-wo/AC

2 groove crank pulley

Ford Service Part Number ID D0OZ-6A312-E

D0OE-6312-B2

Ok70 302 Falcon w/PS

Ok71 302 Ford, Torino, Mustang w/55amp wo/PS

Ok71 302 Maverick w/55amp

Ok71 351W&C 2v·4v_ exc.CJ-w/idler_or_PS-wo/AC

Ok72 351W&C 2v-w/idler_or_PS-wo/AC

2 groove crank pulley

8" & 6.56" diameter

2.21" total depth

Ford Service Part Number ID D0OZ-6A312-E

D0OE-6312-B3

Ok70 302 Falcon w/PS

Ok71 302 Ford, Torino, Mustang w/55amp wo/PS

Ok71 302 Maverick w/55amp

Ok71 351W&C 2v·4v_ exc.CJ-w/idler_or_PS-wo/AC

Ok72 351W&C 2v-w/idler_or_PS-wo/AC

2 groove crank pulley

8" & 6.56" diameter

2.21" total depth

Ford Service Part Number ID D0OZ-6A312-E

D0OE-6312-C

Ok70-71 302 Ford, Torino, Mustang w/AC

Ok70 302 Falcon w/AC

Ok72 302 Torino, Mustang w/AC

Ok70 302 Ford w_or_wo/PS wo/AC

Ok70+ 302 Torino w/PS wo/AC

Ok70 302 Mustang w/PS wo/AC

Ok71 302 Mustang w/rear_defog, wo/PS&AC

Ok72 302 Mustang, Maverick w/PS wo/AC

Ok71+ 302 Maverick w/All AC

Ok70-71 351W&C 2v_4v exc/CJ  w/AC-w_or_wo/PS

Ok72 351W&C  2v w/AC-w_or_wo/PS

Ok70 351W&C w/Idler_or_PS-wo/AC

Ok71 351C Mustang w/rear_defog

3 groove crank pulley

Ford Service Part Number ID D0OZ-6A312-B

D0OE-6312-D

Ok70 429 PC Torino(CJ)-55amp

Ok70 429CJ Torino w/AC & PS-bef  5/11/70

Ok70 429CJ 429SCJ Torino w/std_alt-before 5/11/70

Ok71+ 429 PC

Ok72 429 Torino(PC)

3 groove crank pulley

7 1 /16", 6 3/4" &

6 31/32" outer dia.

Ford Service Part Number ID D0OZ-6A312-C

D0OE-6312-E

Ok429 app been Replaced with D0OE-6312-D

2 groove crank pulley

D0OE-6312-F

Ok70 429CJ 429SCJ Torino w/std_alt -after 5/11/70

Ok71 429CJ 429SCJ Torino, Mustang  w/idler_pulley_or_PS_wo/AC

2 grooves crank pulley

6 1/4" inner dia

7" outer dia

Ford Service Part Number ID D0OZ-6A312-G

No Image
D0OE-6312-H

Ok70 429CJ Torino w/AC&PS from_11-may-70

Ok71 429CJ Torino, Mustang w/AC

3 groove crank pulley

6 1/4", 7 1/16" &

7 5/32"

Ford Service Part Number ID D0OZ-6A312-H

No Image
D0SE-6312-B

Ok70+ 429 Ford w/AC&PS

Ok70 429 Thunderbird w/AC&PS

Ok70 429 Torino (exc/CJ) w/AC&PS

Ok72 429 Torino (exc/PC)-w/internal_AC

3 Grooves

Ford Service Part Number ID D0SZ-6A312-B

D0ZE-6312-A

Boss 302

OkReplaced with D0ZE-6312-B



D0ZE-6312-B



Boss 302

Ok70 Boss 302 Mustang

Ok71 302 Mustang-GT wo/AC

Ok71+ 302 Maverick w/Std_alt

Ok70 302 Mustang (2v)-Std.

Ok70 302 Falcon wo/PS_or_AC

Ok70+ 302 Ford, Torino, Mustang Std-wo/PS_or_AC

Ok70+ 351W 351C &351CJ wo/AC or PS

Ok71+ Boss 351 Mustang

Ok71 351CJ w/PS-wo/AC

3 Grooves

Diameter : 6.687", 5.875"
Overall depth : 2.50" , to mounting bolts 2.20

Ford Service Part Number ID D0ZZ-6A312-A

D1ZE-6312-AA

Ok351 & Boss 351

application replaced with D0ZE-6312-B

1 Groove

D1ZE-6312-BA

Ok351 application replaced with D0ZE-6312-B


No Image

D1ZE-6312-CA

Ok351 application replaced w D2OE-6312-AA


No Image
D2OE-6312-AA

Ok71+ 351CJ Mustang w/AC-w_or_wo/PS

Ok72 351C 351CJ 4v w/PS-wo/AC

3 Groove

Ford Service Part Number ID D2OZ-6A312-A

D2OE-6312-BA

Ok351 application replaced w D2OE-6312-AA


No Image

FORD Water Pump Pulleys      ( Ford Service Part Number ID 8509 )

C0DE-8509-A

Ok65 200 Fairlane HangOn/AC (XC-wo/PS)

Ok65 170 Mustang (exc/AC or PS)

Ok65 170 Falcon (exc/AC or PS)

Ok66 200 Fairlane std.(exc/PS,AC,53·55amp)-wo/TE

Ok66 200 Mustang std. (exc.PS, AC) wo/TE

Ok66 170 200 Falcon std.(exc/PS, AC) wo/TE

Ok67 200 Fairlane std.(exc/PS,AC,53·55amp)-wo/TE

Ok67 200 Fairlane AT_w/Imco(exc/AC)-w/TE from_14-nov-66

Ok67 200 Mustang std. (exc.PS, AC) wo/TE

Ok67 200 Mustang AT_w/Imco(exc/AC) from_14-nov-66 w/TE

Ok67 170 200 Falcon std., wo/TE

Ok67 170 200 Falcon AT-w/Imco((exc/AC)- w/TE from14-nov-66

Ok68 200 Fairlane w/std_alt.wo/AC

Ok68 200 Mustang wo/AC w/Imco

Ok68 200 Falcon w/Imco wo/AC, PF w/55anp

Ok69 200 Mustang wo/AC

Ok69 170 200 Falcon wo/AC

Ok70 200 Mustang wo/AC

Ok70 170 Maverick (AT)-wo/AC

Ok70 200 Maverick wo/AC

Ok70 200 Falcon wo/AC

Ok71 200 Maverick wo/AC wo/PS

Ok72 200 Maverick wo/AC

1 groove

5.60" diameter

1.88" overall depth

Ford Service Part Number ID C0DE-8509-A

C1AE-8509-B

?

3 grooves

cast iron

C2OE-8509-D

?62-64 Small Block Water Pump Pulley

Ok65 260 289 Mustang w/gen-AC_or_XC w_or_wo/PS

2 grooves

cast iron

5.40" diameter

Overall depth : 3.25"

Ford Service Part Number ID C2OZ-8509-B

C2OE-8509-F

Ok62 Small Block Water Pump Pulley

3 grooves

Ford Service Part Number ID C2OZ-8509-D

No Image
C2OE-8509-H

Ok62 Small Block Water Pump Pulley

3 grooves

Ford Service Part Number ID C2OZ-8509-F

No Image
C3OE-8509-B

?63

1 groove

Diameter 4.937"

Overall depth 1.83"

Ford Service Part Number ID

C4GE-8509-K

or

C4GE-8509-A

Ok65 200 Mustang PS (exc/AC)

Ok65 200 Falcon PS (exc/AC)

Ok68 200 Fairlane w/AC or PF, w/TE or Imco

Ok68 200 Mustang w/AC

Ok68 200 Falcon w/AC

Ok69 200 Mustang w/AC

Ok69 170 200 Falcon w/AC

Ok70 200 Mustang w/AC

Ok70 170 200 Maverick w/AC

Ok70 200 Falcon w/AC

Ok71-72 200 Maverick w/AC

2 grooves

4.98" diameter



Ford Service Part Number ID C5AZ-8509-K

No Image
C4ZE-8509-A

Ok64 Mustang 170-200 6-cyl wo/AC w/PS

Ok65 Mustang 170  w/PS(exc w/AC)

Ok65 170 Falcon PS(exc/AC)

Ok66 200 Fairlane (PS exc/AC-fact,dir.), 53·55amp wo/TE

Ok66 200 Fairlane std.(PS exc/AC), 53·55amp, Power_fan, w/TE

Ok66 Mustang 200 std.(exc w/AC), (PS-factory)-XC w/TE

Ok66 Mustang 200 w/PS-factory, dir. wo/TE

Ok66 170 200 Falcon PS-wo/AC wo/TE

Ok66 170 200 Falcon std,(PS exc/AC), XC w/TE

Ok67 200 Fairlane Std., PS, XC, Power_fan, 53amp, w/TE before_14-nov-66

Ok67 200 Fairlane (exc/AT_w/Imco or AC)-w/TE from_14-nov-66

Ok67 200 Fairlane PS, (53·55amp wo/PS)-wo/TE

Ok67 200 Mustang PS wo/TE

Ok67 200 Mustang Std.(exc/AC),PS, XC-w/TE before_14-nov-66

Ok67 200 Mustang ST(exc/AC) w/TE from_14-nov-66

Ok67 170 200 Falcon PS, (53·55amp wo/PS), wo/TE

Ok67 170 200 Falcon Std, PS, XC, wo/TE before_14-nov-66

Ok67 170 200 Falcon ST(exc/AC) w/TE from_14-nov-66

Ok68 200 Fairlane w/55amp.w/Imco wo/AC, w/std&55amp.w/TE wo/AC

Ok68 200 Mustang wo/AC, w/TE

Ok68 200 Falcon wo/AC, w/TE

2 grooves

Diameter : 5.625"
Overall depth : 1.85"

3/8" belt groove

Ford Service Part Number ID C4DZ-8509-A

C5AE-A

Ok65 Small Block

2 grooves

5 7/8" diameter

Ford Service Part Number ID C5AZ-8509-D

C5AE-8509-B

Ok65-67 289

1 groove

6 1/8" diameter

Overall depth 2.40"

Ford Service Part Number ID C5AZ-8509-E

C5AE-8509-C

? 65+

1 groove

7" diameter

Overall depth : 2.39"



C5AE-8509-D

Ok65 240 Ford 53·55amp

2 grooves

7" diameter

Ford Service Part Number ID C5AZ-8509-F

No Image

C5AE-E

C5AE-F

Ok65 240 Ford w/AC

2 grooves

5.85" diameter

Ford Service Part Number ID C6AZ-8509-G

No Image

C5DE-8509-A

Ok65 200 Fairlane w/AC

Ok65 200 Fairlane XC(w/PS & auto/trans)

Ok65 200 Mustang AC (w_or-wo/PS)

Ok65 170 200 Falcon AC (w_or-wo/PS)

Ok66 200 Fairlane Integral/AC-w_or_wo/TE

Ok66 200 Fairlane HangOn/AC-dir. wo/TE

Ok66 200 Mustang HangOn/AC w_or-wo/TE

Ok66 170 200 Falcon Integral/AC w_or_wo/TE w_or_wo/PS

Ok66 170 200 Falcon HangOn/AC wo/TE

Ok67 200 Fairlane AC w_or_wo/TE

Ok67 200 Mustang AC w_or_wo/TE

Ok67 170 200 Falcon AC w_or_wo/TE w_or_wo/PS

2 grooves

5.00" diameter

Ford Service Part Number ID C5DZ-8509-A

No Image
C5OE-8509-A

Ok65 289 Ford PS or 42·45amp (exc/AC)

Ok65 289 Fairlane PS or 38amp

Ok65 289 Mustang units w/alt-exc/AC XC

Ok65 289 Falcon ( exc/AC or XC)

Ok66 289 Ford Std. or PS(exc/AC) wo/TE

Ok66 289 Fairlane Std. (PS-factory,dir -exc/55amp) wo/TE

Ok66 289 Mustang Std. (PS exc/AC) wo/TE

Ok66 289 Falcon Std. (PS exc/AC) wo/TE

Ok67 289 Ford Std. or PS (exc/53·55·60amp or AC) wo/TE

Ok67 289 Fairlane Std. PS, Integral/AC wo/TE

Ok67 289 Mustang Std., PS(exc/AC) wo/TE

Ok67 289 Falcon Std, (PS exc/AC), wo/TE

Ok69 390GT Fairlane/Torino std.&XC before_6-jan-69

Ok69 390GT Mustang std.&XC before_17-feb-69

1 groove

6.11" diameter

Overall depth 2.43"

Ford Service Part Number ID C5AZ-8509-J

C5UE-8509-A

Ok65 240 Ford (exc/AC or 53·55amp)

Ok66 240 Ford std. (exc/AC) wo/TE

Ok67 240 Ford std. (exc/AC or SuperXC) wo/TE

Ok68 240 Ford w/Imco wo/55amp

Ok68 170 Falcon w/TE

Ok68 200 Falcon w/TE wo/AC

Ok68 200 Falcon w/Imco w/55amp.wo/AC

Ok69 240 Ford

Ok70 240 Ford

Ok71-72 240 Ford wo/AC

1 groove

6.98" diameter

Ford Service Part Number ID C5AZ-8509-A

C6AE-8509-A

428 CJ SCJ

Ok65 289 Ford AC_or_53·55·60amp

Ok65 352 390 Ford exc/PI Integ/AC, PS, XC

Ok65 289 Fairlane AC, XC, 53·55·60amp

Ok65 289 Mustang AC w/alt w_or_wo/PS

Ok65 289 Falcon w/AC w/XC

Ok66 289 Ford HangOn_AC dir_inst. wo/TE

Ok66 289 Ford 53·55·60amp wo/TE

Ok66 289 Ford Integral/AC wo/TE

Ok66 352 390 428 (exc.PI) Ford Integral/AC w_or_o/TE

Ok66 428PI Ford Integral/AC w_or_wo/TE from_14-feb-/66

Ok66 428PI Ford Std (exc/AC)-wo/TE from_14-feb-/66

Ok66 289 Fairlane Integral/AC w_or_wo/TE w_or_wo/PS

Ok66 289 Fairlane 55amp wo/TE w_or_wo/PS

Ok66 289 Fairlane HangOn/AC-dir wo/TE w_or_wo/PS

Ok66 390 Fairlane Integral/AC w_or_wo/TE w_or_wo/PS

Ok66 390 428 Tbird Integral/AC w/TE

Ok66 289 Falcon HangOn/AC-dir wo/TE w_or_wo/PS

Ok66 289 Falcon Integral/AC w_or_wo/TE w_or_wo/PS

Ok67 289 Ford AC w/TE

Ok67 289 Ford 53·55·60amp Super/XC_or_AC wo/TE

Ok67 390 428 Ford exc/PI Integral/AC-w_or_wo/TE

Ok67 289 Fairlane Hang_on/AC wo/TE

Ok67 289 Fairlane AC 55amp w/TE

Ok67 390 Fairlane w/PS w/AC-dir_inst. wo/TE

Ok67 390 Fairlane Integral/AC w_or_wo/TE before_9-jan-67

Ok67 390 Fairlane Integral/AC w/TE from_9-jan-67

Ok67 390 Fairlane Integral/AC-exc/GT wo/TE from_9-jan-67

Ok67 390 Mustang Integral/AC w_or_wo/TE before_9-jan-67

Ok67 390 Mustang Integral/AC w/TE from_9-jan-67

Ok67 390 428 Tbird exc/AC wo/TE

Ok67 390 428 Tbird Integral/AC w_or_wo/TE

Ok67 289 Falcon w/AC w_or_wo/TE w_or_wo/PS

Ok68-69 302 Ford w/AC

Ok68 390 428 Ford w/AC

Ok68 390 Fairlane w/AC

Ok68 289(2v) 302 Mustang w/TE_or_Imco-w/AC

Ok68 390 Mustang w/AC

Ok69 390 Ford w/AC, Imco

Ok69 302 351 390GT 428CJ Fairlane w/AC

Ok69 302-2v 351 390GT 428CJ Mustang (exc/Boss)w/AC

Ok69 302 Falcon w/AC

Ok70 428CJ Mustang w/AC

2 grooves

5.86" diameter

Overall depth 2.47"

Ford Service Part Number ID C6AZ-8509-A

C6AE-8509-A



?66 289 Mustang 55amp, w/TE



3 grooves

5.86" outer diameter

3.375" inner diameter

Ford Service Part Number ID

C6AE-8509-C

Ok66 240 Ford 53·55amp wo/TE

Ok67 240 Ford 53·55amp (SC & XC) wo/TE

Ok68 240 Ford w/55amp w/Imco

Ok69 240 Ford w/55amp

Ok70 240 Ford w/55amp b4_1-dec-69

2 grooves

7.10" diameter

Ford Service Part Number ID C6AZ-8509-K

No Image

C6AE-8509-D

Ok66 240 Ford Integral/AC or wo/TE

Ok67 240 Ford Integral/AC-w_or_wo/TE

Ok67 240 Ford (42·53·55amp w/SuperXC), or_HangOn/AC  w/TE

2 grooves

5.85" diameter

Ford Service Part Number ID C6AZ-8509-G

No Image

C6AE-8509-E

Ok66 352 390 428 exc/PI Ford 53·55·60amp wo/TE

Ok66 428PI Ford std.(exc/AC) wo/TE before_14-feb-66

Ok67 390 428 exc/PI Ford 53·55·60 wo/TE

Ok67 390 Fairlane Std.(53·55·60amp wo/AC) w/AT and Imco

2 grooves

6.83" diameter

Ford Service Part Number ID C6AZ-8509-B

No Image
C6AE-8509-F

Ok66 240 Ford HangOn/AC-dir.inst wo/TE

Ok66 352 390 428 exc.PI Ford HangOn/AC, wo/TE

Ok66 390 Fairlane 53·55amp wo/TE before_28-jan-66 (w_or_wo/PS)

Ok66 390 Fairlane-GT 53_55amp (exc/AC) wo/TE w_wo/PS from_28-jan-66 (w_or_wo/PS)

Ok66 390 Fairlane-GT 53_55amp w/XC wo/TE (exc/AC)-exc/GT from_28-jan-66 (w_or_wo/PS)

Ok66 390 Fairlane HangOn/AC wo/TE (w_or_wo/PS)

Ok66 428PI Ford HangOn/AC,  wo/TE

Ok66 428PI Ford Internal/AC, w_or_wo/TE- before_14-feb-66

Ok66 390 Thunderbird Integral/AC wo/TE

Ok67 390 428 Ford Std & XC

Ok67 390 428 Ford w/53·55·60·65 amp_alt

Ok67 390 428 exc/PI Ford HangOn/AC wo/TE

Ok67 428PI Ford Std (exc/AC) wo/TE

Ok67 428PI Ford Std Integral/AC w_or_wo/TE

Ok67 390 Fairlane Integral/AC-GT wo/TE from_9-jan-67

Ok67 390 Fairlane HangOn/AC wo/TE

Ok67 390 Fairlane 53_55amp-GT wo/TE

Ok67 390 Fairlane 53_55amp w/XC-exc/GT-wo/TE

Ok67 390 Mustang Integral/AC, wo/TE from_9-jan-67

Ok67 390 Mustang HangOn/AC, w_or_wo/TE

Ok68 390 428 Ford Std & XC, wo/TE-w/53·55·60amp

Ok68 390 428 Ford w/AC

Ok70-71 390 Ford (exc/PC) w/AC

2 grooves

6.23" diameter

Ford Service Part Number ID C6AZ-8509-C

C6AE-8509-G

Ok65 240 Ford w/AC

Ok66 240 Ford Integral/AC or wo/TE

Ok67 240 Ford Integral/AC-w_or_wo/TE

Ok67 240 Ford (42·53·55amp w/SuperXC), or_HangOn/AC  w/TE

2 grooves

5.85" diameter

Ford Service Part Number ID C6AZ-8509-G

No Image
C6AE-8509-J

Ok66 428PI Ford Std. (exc/AC) w/TE

Ok66 390 Fairlane (std. exc/AC) (PS wo/AC) XC,53·55amp (pow_fan-exc/GT)-w/TE before-28-jan-66

Ok66 390 Fairlane XC w_or_wo/PS, 53·55amp, Pow-fan (exc/AC)-exc/GT-w/TE from_28-jan-66

Ok67 390 428 Ford Std. w/XC w/TE w/55·60amp LN_alt

Ok66 428PI Ford Std. PS 53·55·60amp.exc/AC w/TE

Ok67 390 Fairlane Std. PS, XC, 53amp-GT w/TE

Ok67 390 Fairlane XC, Power_fan, 53amp-exc/GT w/TE

Ok67 390 Mustang Std, w/PS, XC, w/TE

Ok68 390 428 exc/PI Ford Std & XC w/TE w/55·65_Ford_or_53·60amp_LM(PU)

3 grooves

5.68", 6.10" dia

Ford Service Part Number ID C6AZ-8509-D

No Image
C6ME-8509-A

Ok67 390 428 Ford exc/PI Ford SuperXC w/TE

Ok67 390 428 Thunderbird std, XC(exc/AC)-w/TE





3 grooves

6.62" diameter

6.82" diameter

Ford Service Part Number ID C7MY-8509-A

No Image
C6OE-A

Ok66 289 Ford Std, PS, XC, 55amp w/TE

Ok66 289 Fairlane std.(PS exc/AC), XC, 55amp, Power_fan w/TE

Ok66 289 Mustang Std, PS, XC, w/TE

Ok66 289 Falcon Std, (PS exc/AC) XC-w/TE

Ok67 289 Mustang Std., PS, XC-w/TE before_14-nov-66

Ok67 289 Mustang ST(exc/AT, AC, Special)-w/TE from_14-nov-66

3 grooves

4.36", 6.00" dia

Ford Service Part Number ID C7AZ-8509-B

Ford Service Part Number ID C6AZ-8509-E

No Image
C6OE-8509-B

Ok66 289 Ford Integral/AC w/TE

Ok66 289 Mustang HangOn/AC w_or_wo/TE

Ok67 289 Mustang AC w_or_wo/TE

Ok69 351 Ford w/PS & AC

2 grooves

5.34" dia

Ford Service Part Number ID C6AZ-8509-F

C6OE-8509-C

427

Ok66 390 Fairlane 38amp(exc/AC)-GT wo/TE

Ok66 390 Fairlane 38amp(exc/AC) wo/TE exc/GT before_28-jan-66 (w_or_wo/PS, used with C5AZ-8600-G 4-blade fan)

Ok66 390 Fairlane 38amp w/XC (exc/AC)-exc/GT-wo/TE from_28-jan-66 ( used with C6MY-8600-B 6-blade fan)

Ok67 390 428 Ford Std & XC wo/TE w/Std_Alt

Ok67 390 Fairlane std.-GT wo/TE

Ok67 390 Fairlane XC-exc/GT wo/TE

Ok67 390 Fairlane PS wo/AC-dlr_inst wo/TE

Ok67 427 Fairlane

Ok67 390 Mustang Std, PS(exc/AC) wo/TE

Ok68 390 428 Ford Std & XC wo/TE w/Std_ford_alt

1 groove

6 3/16 " dia

Ford Service Part Number ID C6OZ-8509-A

C6OE-8509-D

Ok66 390 Fairlane 53·55amp w/std_cool wo/TE (exc/AC)-exc/GT from_28-jan-66

Ok67 390 Fairlane 53·55amp wo/XC-exc/GT-wo/TE

2 grooves

7.35" diameter

Ford Service Part Number ID C6AZ-8509-M

No Image

C6OE-8509-E

Ok66 390 Fairlane w/std_cool w_or_wo/PS, 53·55amp, Power_fan(exc/XC, AC)-exc/GT-w/TE from_28-jan-66

3 grooves

5.56" diameter

7.22" diameter

Ford Service Part Number ID C6AZ-8509-P

No Image

C6TE-8509-A

Ok66 352 390 428 exc/PI Ford std, PS, XC 53·55·60amp,-w/TE

Ok66 390 428 Thunderbird std,, XC(exc/AC) w/TE

Ok67 390 428 exc/PI Ford std, PS, XC, 53·55·60amp-(exc/AC or SuperXC)  w/TE

Ok67 390 Fairlane SC, w_or_wo/PS, 53amp, Power_fan-exc/GT

3 grooves

5.62" diameter

6.82" diameter

Ford Service Part Number ID C6TZ-8509-A

C6TE-8509-B

Ok66 240 Ford std exc/AC w/TE

Ok67 240 Ford std. (axc/AC)  w/TE

3 grooves

5.85" diameter

7.00" diameter

Ford Service Part Number ID C6TZ-8509-B

No Image

C6TE-8509-C

Ok68 289 302 Fairlane w/AC

Ok68 289 302 Falcon w/AC, w/TE

Ok69 390PC Ford wo/AC

Ok70 390 Ford (PC)-wo/AC

2 grooves

6 1/8" diameter

Ford Service Part Number ID C6TZ-8509-C

No Image

C7OE-8509-A

C7OE-A

Ok65 390PI Ford Integral/AC(w_or_wo/PS)

Ok65 351 390 390PI Ford HangOn/AC(w_or_wo/PS)

Ok66 289 Ford std. PS, XC, 55amp w/TE

Ok66 289 Fairlane std.(PS exc/AC), XC, 55amp, Power_fan w/TE

Ok66 289 Falcon Std, (PS exc/AC) XC-w/TE

Ok67 289 Ford std. PS XC 55amp(exc_w/TE) (exc/AC)  before_14-nov-66

Ok67 289 Ford ST(exc /AC)-w/TE from_14-nov-66

Ok67 289 Fairlane Std. PS, XC, power_fan w/TE before_14-nov-66

Ok67 289 Fairlane ST (exc/Auto, AC, 55amp)-w/TE from_14-nov-66

Ok67 289 Special Mustang w/TE

Ok67 289 Mustang Std., PS, XC-w/TE before_14-nov-66

Ok67 289 Mustang ST(exc/AT, AC, Special)-w/TE from_14-nov-66

Ok67 289 Falcon Std, (PS exc/AC), XC, w/TE before_14-nov-66

Ok67 289 Falcon ST (exc/Auto, AC)-w/TE from_14-nov-66

3 grooves

4.36" 6.00" diameter

Ford Service Part Number ID C7AZ-8509-B

No Image

C7OE-8509-B

Boss 302

Ok67 289 Ford Auto(exc/AC)-w/TE-from_14-nov-66

Ok67 289 Fairlane AT(exc/AC-w/TE) form_14-nov-66

Ok67 289 Mustang AT(exc/AC,Special) w/TE form_14-nov-66

Ok67 289 Falcon AT(exc/AC), w/TE from_14-nov-66

Ok68 302 Ford wo/AC, w/TE

Ok68 289 Fairlane w/TE

Ok68 289 GT Mustang High Performance

Ok68 289 302 Mustang (exc/Hipo) w/TE wo/AC

Ok68 289 302 Falcon wo/AC w/TE w/Imco

Ok69 Boss 302-4v Mustang

3 grooves

6 1/2 " dia

Ford Service Part Number ID C7AZ-8509-E

C7OE-8509-D

Ok68 302 Ford w/55,65amp_Ford or 65amp L-N AT w/PS wo/AC w/Imco

Ok68 289 302 Fairlane w/PS or 55amp.AT wo/AC w/Imco

Ok68 289 302 Falcon w/PS or 55amp, AT-wo/AC

Ok69 302 351 Ford w/PS or w/HD_alt -wo/AC

Ok69 302 351 Fairlane w/PS wo/AC

Ok69 302-2v(exc/Boss) 351 Mustang w/PS wo/AC

2 grooves

6 7/16 " diameter

Overall depth : 2.48"

Ford Service Part Number ID C8OZ-8509-B

C8AE-8509-A

Ok68 390-2v Fairlane w/55amp wo/AC, w/Imco

Ok69 390 exc/PC Ford w/55·65amp

Ok70 390 Ford (exc/PC)-w/55_or_65amp

Ok71 390 Ford)exc/PC)-w/55 or 65amp, wo/AC

2 grooves

7 1/4" diameter

Ford Service Part Number ID C8AZ-8509-B

C8AE-8A528-A

Ok68 390-2v Fairlane wo/55amp. wo/AC, w/Imco



1 groove

7 1/4" diameter

Ford Service Part Number ID C8AZ-8509-A

No Image
C8AE-8A528-B

Ok68 390 428 Ford Std., PS, XC

Ok69 390 exc/PC Ford Std.

Ok69 390GT Fairlane Std.& XC from_1/6/69

Ok69 390GT Mustang std.&XC from_17-feb-69

Ok71 390 Ford w/42amp

1 groove

7 1/4" diameter

Overall depth : 2.40"

Ford Service Part Number ID C8AZ-8509-A

C8AE-8509-B

? 68+

2 groove



C8AE-8509-C

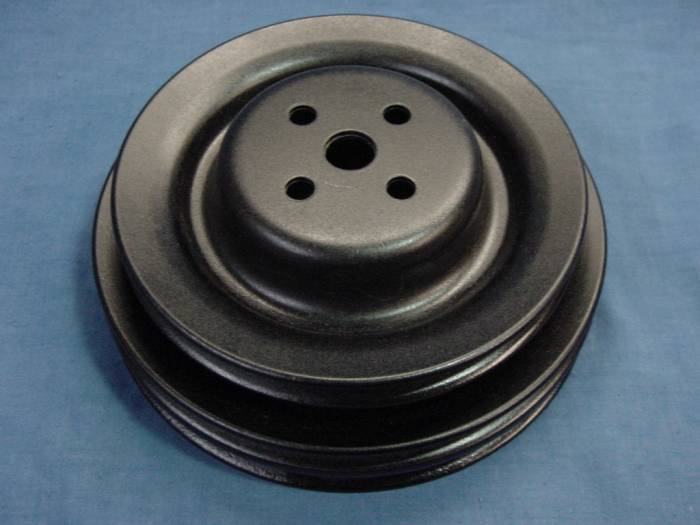

428 CJ SCJ

Ok68 390 428 exc/PC Ford std.&XC w/42.55.65amp w/TE, wo/AC(exc/PU)

Ok68 428PC Ford wo/AC

Ok68 390 Fairlane wo/AC(exc/GT)

Ok69 428CJ Fairlane/Torino std.

Ok69 428CJ Mustang std.

Ok70 428CJ Mustang std.&_XC b4_1-sep-69

3 Grooves

6 17/64 " inner dia.

7 7/64" outer dia

Ford Service Part Number ID C8AZ-8509-D

C8AE-8509-D

Ok68 Replaced by C8AE-8509-C

3 grooves

6 1/4" inner dia.

7 1/8" outer dia

Ford Service Part Number ID C8AZ-8509-D

No Image
C8AE-8A528-F

Ok68 302 Ford wo/AC, w/Imco

Ok68 289 302 Fairlane w/PS, wo/AC, w/Imco

Ok68 289 302 Falcon wo/PS, wo/AC, w/Imco

Ok69 302 351 Ford Std.

Ok69 302 351 Fairlane Std.

Ok69 302-2v 351 Mustang Std. (exc/Boss)

Ok69 302 Falcon Std.

1 groove

6 7/16" diameter

Ford Service Part Number ID C8OZ-8509-A

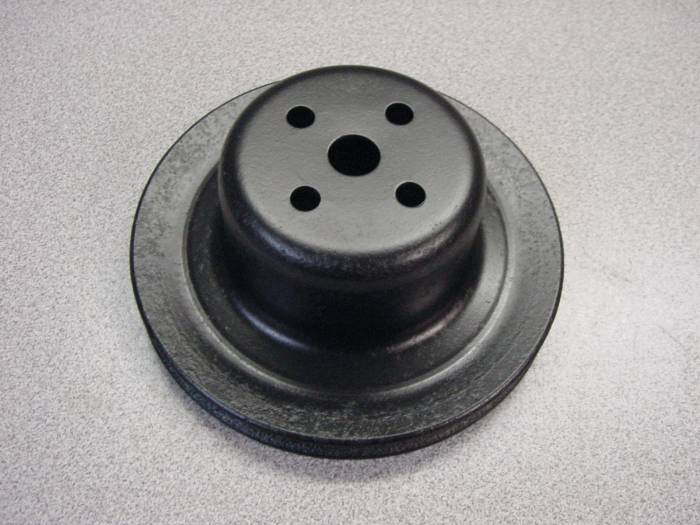

C8OE-8A528-A

Ok68-69 289 302 Bronco

1 groove

6 1/8" diameter

Ford Service Part Number ID C8OZ-8509-D

C8OE-8509-A

428 CJ SCJ427

Ok68 427 Ford

Ok68 390_2v Fairlane wo/AC w/TE

Ok68 390_4v Fairlane GT wo/AC

Ok68 427 Fairlane

Ok68 428CJ Fairlane wo/AC

Ok68 389 428CJ Mustang wo/AC

Ok68 427 Mustang

Ok69 428 Ford std.

Ok70 428 Ford std.

Ok70 428CJ Mustang std.&XC from_1-sep-69

Ok70 428SCJ Mustang

Matches with crank pulley C8AE-6312-E

3 Grooves

6 17/64 " inner dia.

7 7/64" outer dia

Ford Service Part Number ID C8OZ-8509-C

C8TE-8509-A

Ok68 240 Ford w/XC&Stad_alt wo/PS

Ok68 240 exc/PC Ford w/TE, wo/AC

3 grooves

6 1/8" inner dia.

7" outer dia.

Ford Service Part Number ID C8TZ-8509-A

No Image

C8VY-8509-A

Ok68 429 Thunderbird wo/AC

1 groove

6 21/64 " dia.

Ford Service Part Number ID C8VY-8509-B

No Image

C8SE-8509-C

Ok68 429 Thunderbird w/AC b4_26-dec-67

3 grooves

6" diameter

Ford Service Part Number ID C8SZ-8509-B

No Image

C8SE-8509-F

Ok68 429 Thunderbird w/AC from_26-dec-67

3 grooves

6" diameter

Ford Service Part Number ID C8SZ-8509-C

No Image

C9AE-8509-A

?69-70 302 351

1 groove

6 7/8" inner dia.

2 7/8" total depth

Ford Service Part Number ID

No Image

C9AE-8509-E

Ok69 429 Ford w/AC

3 grooves

5 41/64" inner dia.

6 3/4 " outer dia.

Overall depth : 3.09"

Ford Service Part Number ID C9AZ-8509-C

C9AE-8509-G

Ok69 429 Ford PC-w/AC

3 grooves

6 " inner dia.

6 1/4 " outer dia.

Ford Service Part Number ID C9AZ-8509-C

No Image

C9AE-8509-H

Boss 429

Ok69 Boss 429 Mustang

Ok70 Boss 429 Mustang

2 grooves

6 3/4" inner dia.

7 1/4 " outer dia.

Ford Service Part Number ID C9AZ-8509-D

No Image

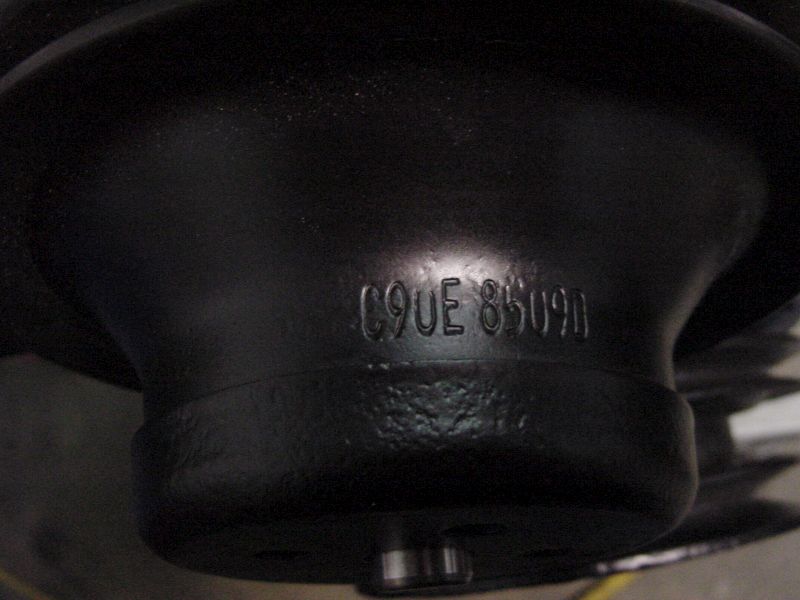

C9OE-8509-D

?390 Water pump pulley



1 groove

C9OE-8509-E

C9OE-E

Boss 302

Ok70 302 351 Ford std. pulley

Ok70 302 351 Torino

Ok70 302 351 Mustang std. pulley

Ok70 Boss 302  Mustang

Ok70 302 Falcon std._pulley

Ok71 302 351 400 Ford std. pulley

Ok71 302 351 Torino Std._pulley

Ok71 302 351 Mustang Std._pulley

Ok71 BOSS 351 Mustang std/cool wo/PS

Ok71 302 Maverick wo/PS

Ok72 302 351 400 Ford wo/AC & PS

Ok72 302 351 400 Torino wo/AC-w/PS-wo/Idler_pulley

Ok72 302 351 Mustang Std._pulley

Ok72 302 Maverick std. pulley

1 Groove

6 61/64 " outer dia.

Overall depth : 1.85"

Ford Service Part Number ID C9OZ-8509-B

C9OE-8509-F

C9OE-F

Ok70 351 Ford w/XC or AC

Ok70 302 Ford w/AC

Ok70 302 Falcon w/AC

Ok71 302 351 400 Ford w/AC

Ok71 302 351 Torino w/AC

Ok71 302 351 Mustang w/AC

Ok72 351 400 Ford w/AC

Ok72 351CJ Torino w/AC

Ok72 302 351 Mustang w/AC

Ok72 302 Maverick w/AC

1 Groove

5 15/16 " outer dia.

Ford Service Part Number ID C9OZ-8509-C

C90E-8A528-F

?Water pump pulley

1 Groove

7" outer dia.

1 3/4"total depth

Ford Service Part Number ID

C9OE-8509-G

C9OE-G



Boss 302

Ok70 302 351 Ford w/PS or 55amp

Ok70 302 351 Torino w/PS or 55amp

Ok70 302 351 & Boss_302  Mustang w/PS

Ok70 302 Falcon w/PS

Ok71 302 351 Ford w/Idler wo/AC

Ok71 302 351 400 Ford w/PS wo/AC

Ok71 302 351 Torino w/Idler-wo/AC or w/PS wo/AC

Ok71 302 351 Mustang w/Idler wo/AC or w/PS-wo/AC

Ok71 BOSS 351 Mustang std_cool w/PS

Ok71 302 Maverick w/PS wo/AC

1 Groove

6 61/64 " outer dia.

Ford Service Part Number ID C9OZ-8509-D

C9SE-8509-A

Ok69 429 Ford PC-std., XC

Ok69 429 Thunderbird wo/AC

2 grooves

6 5/16 " diameter

Ford Service Part Number ID C8VY-8509-B

No Image

C9ZE-A

C9ZE-B

Ok69 250 Fairlane/Torino w/AC

Ok69 250 Mustang w/AC

Ok70 250 Torino w/AC

Ok70 250 Maverick w/AC

2 grooves

5 29/32" diameter

Ford Service Part Number ID C9ZZ-8509-A

No Image
C9ZE-8A528-C

Ok69 250 Fairlane/Torino wo/AC

Ok69 250 Mustang wo/AC

Ok70 250 Torino

Ok70 250 Mustang

Ok70 250 Maverick wo/AC

1 groove

6.70" diameter

Ford Service Part Number ID C9ZZ-8509-B

D0OE-8509-A

Ok70 429 Ford wo/AC

Ok70 429_exc/S-CJ Torino wo/AC b4_11-may-70

Ok70 429 Thunderbird wo/AC

Ok71 429 Ford wo/AC

Ok71 429 Thunderbird wo/AC

Ok72 429 Ford w/PS-wo/AC

Ok72 429 Ford w/Idler-wo/AC

Ok72 429 Torino w/Idler-wo/AC or wo/Idler-wo/AC

1 Groove

7" outer dia.

Ford Service Part Number ID D0OZ-8509-A

D0OE-8509-E

?429 Water Pump pulley

2 Grooves

No Image
D0OE-8509-E1

?429 Water Pump pulley

2 Grooves

D1VE-AA has 1/2" less inward offset

D0OE-8509-J

?Torino Water Pump pulley

2 Grooves

D0OE-8509-K

Ok70 429 Torino w/AC from_11-may-70

2 Grooves

6 3/8 " outer dia

5 3/8 " inner dia

Ford Service Part Number ID D0OZ-8509-K

D0OE-8509-L

Ok70 429CJ Torino w/AC from_11-may-70

Ok71 429CJ Torino w/AC& PS-w/55amp

Ok71 429CJ Mustang w/AC& PS-w/55amp

2 Grooves

6 3/8 " outer dia

5 11/16" inner dia

Ford Service Part Number ID D0OZ-8509-L

No Image
D0OE-8509-M

Ok70 429-SCJ Torino

Ok71 429 Mustang

2 Grooves

6 9/16 " outer dia

5 27/32" inner dia

Ford Service Part Number ID D0OZ-8509-M

No Image
D0SE-8509-A

Ok70 429 exc/S-CJ Torino wo/AC from_11-may-70

Ok71 429 429CJ Torino wo/AC

Ok71 429CJ Mustang SC w/55amp

1 Groove

6 1/2" dia

Ford Service Part Number ID D0SZ-8509-A

No Image

D0SE-8509-B



Ok70 429 PC Ford w/AC

Ok70 429 429CJ Torino w/AC b4_11-may-70

Ok70 429 T-Bird w/AC

Ok71 429PC Ford w/AC

Ok71 429 Ford w/PS & w/AC

Ok71 429 Thunderbird w/AC

Ok72 429 429PC Ford Police_cool w/PS & AC

Ok72 429 Torino w/AC

2 Grooves

Dia : 6.375" & 6.062"
Overall depth : 2.97"

Ford Service Part Number ID D0SZ-8509-B

D1AE-8509-AA

D1AE-AA

Ok71 302 351 400 Ford w/AC

Ok71 302 351 Torino w/AC

Ok71 302 351 Mustang w/AC

Ok72 351 400 Ford w/AC

Ok72 351CJ Torino w/AC

Ok72 302 351 Mustang w/AC

Ok72 302 Maverick w/AC

1 Groove

5 15/16 " outer dia.

Ford Service Part Number ID C9OZ-8509-C

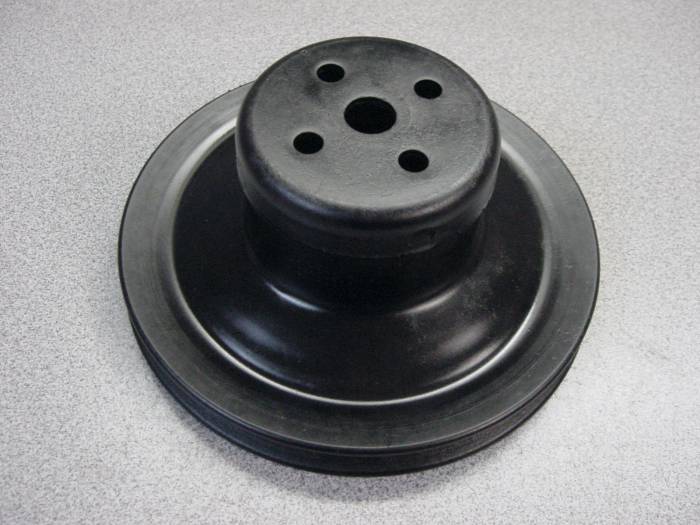

D1AE-8509-BA

D1AE-BA

Ok71 302 351 Ford w/Idler wo/AC

Ok71 302 351 400 Ford w/PS wo/AC

Ok71 302 351 Torino w/Idler-wo/AC or w/PS wo/AC

Ok71 302 351 Torino Mustang w/Idler-wo/AC or w/PS-wo/AC

Ok71 BOSS 351 Mustang std_cool w/PS

Ok71-72 302 Maverick w/PS wo/AC

Ok72 302 400 Ford w/PS-wo/AC

Ok72 351 Ford w/PS or Idler  wo/AC

Ok72 302 351 400 Torino w/PS-wo/AC

Ok72 302 351 Torino w/Idler wo/AC

Ok72 302 351 Mustang w/PS-wo/AC or w/Idler_pulley-wo/AC

1 Groove

6 61/64 " dia.

Overall depth 2 3/8"

Ford Service Part Number ID C9OZ-8509-D

D1OE-8A528-AA

Ok71 250 Torino

Ok71-72 250 Mustang wo/AC

Ok71-72 250 Maverick wo/AC

Ok72 250 Torino wo/AC

1 Groove

6 11/16" dia

Ford Service Part Number ID D1OZ-8509-A

No Image

D1OE-8509-AA

D1OE-AA

Ok71 250 Torino w/AC

Ok71 250 Mustang w/AC

Ok71-72 250 Maverick w/AC

Ok72 250 Mustang w/AC

2 Grooves

6 7/16" dia

Ford Service Part Number ID D1OZ-8509-B

No Image

D2OE-8509-AA

D2OE-AA

Ok72 302 351-2v 400 Torino w/AC

1 Groove

6 7/32" dia

2.85" overall depth

Ford Service Part Number ID D2OZ-8509-A

D2OE-BA

Ok72 250 Torino Integral/AC

2 Grooves

6 7/16" dia

Ford Service Part Number ID D2OZ-8509-B

No Image

D4ZE-8509-AE

D4ZE-AE

?74 Mustang II

1 Groove

D5ZE-8509-BA2

Ok75-78 302 Mustang wo/AC

1 Groove

6 15/16" dia

Ford Service Part Number ID D6ZZ-8509-B

ECG-8509-C

Ok67 390 Fairlane Std. XC, w/AT_&_Imco

1 Groove

6.80" dia.

Ford Service Part Number ID B7A-8509-C

No Image

ECG-8509-F

Ok67 390 428 Ford Std. XC, w/AT_&_Imco

1 Groove

6.80" dia.

Ford Service Part Number ID B7A-8509-C

No Image

ECG-H

ECG-8509-H

427

Ok60-62 292 Ford

Ok61-62 352 390 Ford & Ford Special exc/AC_or_XC

Ok61-64 390 Thunderbird exc/AC w/Tbird63_30&42alt

Ok62-63 406 Ford Special

Ok63-65 427 Ford Special

Ok64 352-390 Ford wo/fan_clutch

Ok65 390 Thunderbird exc/AC

Ok66 390 Fairlane 38amp (exc/AC or XC) wo/TE exc/GT from_28-jan-66 (w_or_wo/PS, used with C6MY-8600-B 6-blade fan)

Ok66 427 Ford

Ok67 390-428 Ford w/PS wo/AC

Ok67 390-428 exc/PI Ford std.(exc/AC, 53·55·60amp or_dlr installed PS)  wo/TE

Ok67 390 Fairlane std.-exc/GT wo/TE

1 Groove

7.32" dia.

Ford Service Part Number ID B7A-8509-B

?

Ok65 260 289 Mustang w/gen-exc/AC,XC

1 groove

5.82" diameter

Ford Service Part Number ID C2OZ-8509-A

No Image

?

Ok65 200 Fairlane (exc/XC or hangOn/AC)

Ok65 200 Mustang (exc/AC or PS)

Ok65 200 Falcon (exc/AC or PS)

Ok70 170 Maverick (ST)-wo/AC

Ok71-71 170 Maverick wo/AC

1 groove

5.00" diameter

1.87" depth

Ford Service Part Number ID C3OZ-8509-B

No Image

?

Ok65 352 390 exc/390PI Ford (exc/AC, PS or 53·55·60amp)

Ok65 352 390 428 exc/PI Ford std.(exc/AC) wo/TE

Ok66 390 428 Thunderbird exc/AC w_or_wo/TE

Ok67 390 428 exc/PI Ford PS(dir.installed) wo/TE

1 groove

7.03" diameter

Ford Service Part Number ID C5AZ-8509-G

No Image

?

Ok65 352 390 Ford 53·55·60amp(exc/AC)

Ok65 390PI Ford (exc/AC)

2 grooves

6.83" diameter

Ford Service Part Number ID C6AZ-8509-B

No Image

?

Ok70 390 Ford (PC)-w/AC

3 grooves

5 5/8 " diameter

5 15/16" diameter

Ford Service Part Number ID C8AZ-8509-C

No Image

?

Ok69 429 Thunderbird w/AC

3 grooves

5 5/8 " diameter

5 15/16" diameter

Ford Service Part Number ID C8SZ-8509-D

No Image

?

Ok69 429 Ford SC, Std_alt

2 grooves

7 1/4 " diameter

Ford Service Part Number ID C9AZ-8509-B

No Image

?

Ok70 429PC Ford wo/AC

Ok71 429PC Ford wo/AC

Ok72 429PC Ford w/PS-wo/AC

Ok72 429PC Ford Police_Cool w/PS

Ok72 429PC Torino Std.

1 groove

6 1/8" diameter

Ford Service Part Number ID D0OZ-8509-H

No Image

POWER STEERING PULLEYS

AB

Ok67 6cyl Ford wo/AC wo/Dual belt_alt

Ok65-67 6cyl Fairlane Falcon wo/AC

Ok65-66 200 Mustang wo/AC

Ok67 6cyl Mustang wo/AC

4 7/8" diameter

5/16" sheeve width

Ford Service Part Number ID C5AZ-3A733-B

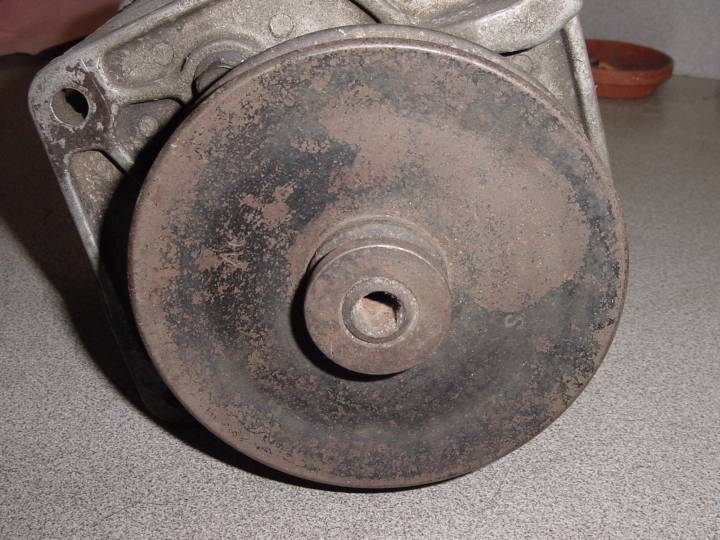

AC

427

Ok65-66 289 352 390 428 Ford wo/AC wo/Dual_belt_alt

Ok65-66 289 Fairlane Falcon wo/AC wo/Dual_belt_alt

Ok65-66 8cyl Tbird wo/AC wo/TE

Ok65-67 289 Mustang wo/AC w/Ford_pump

Ok67 390 428 Ford wo/AC wo/Dual_belt_alt

Ok67 390 427 Fairlane wo/AC wo/Dual_belt_alt

Ok67 390 Mustang wo/AC wo/Dual_belt_alt

Ok67 289 Falcon wo/AC wo/Dual_belt_alt

4 7/8" diameter

Overall depth : 1.12"

7/16" sheeve width

Ford Service Part Number ID C5AZ-3A733-C

AD

Ok65-68 6cyl Ford wo/AC w/Dual belt_alt

Ok67 289 Ford wo/AC wo/Dual belt_alt

Ok67 289 Fairlane Falcon wo/AC w/Dual_belt_alt

Ok69-71 6cyl Ford

5 13/32" diameter

7/16" sheeve width

Ford Service Part Number ID C5AZ-3A733-D

AE

Ok65-66 289 Ford Fairlane Falcon wo/AC w/Dual_belt_alt

4 5/8" diameter

Ford Service Part Number ID C5AZ-3A733-J

Same as AJ pulley

No Image

AF

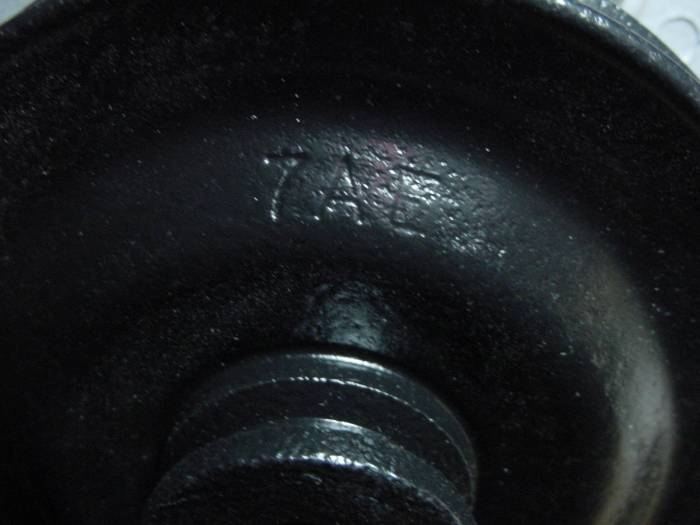

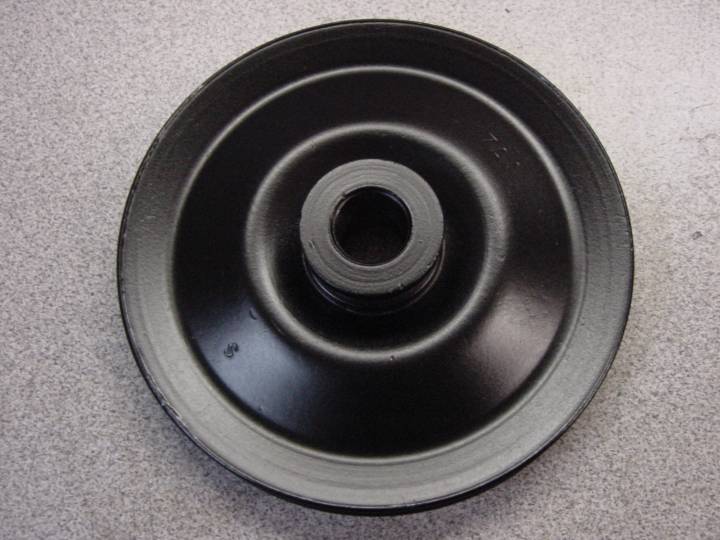

Replaced by pulley 7AA --> C7AZ-3A733-A

5 3/4" diameter

Overall depth : 1.22"

5/16" sheeve width

Ford Service Part Number ID C5AZ-3A733-F



AG

427

Ok65-67 352 390 428 Ford wo/AC w/Dual_belt_alt

Ok65-66 390 Fairlane wo/AC w/Dual_belt_alt

Ok65-66 8cyl Tbird wo/AC w/TE

Ok67 390 427 Fairlane wo/AC w/Dual_belt_alt

Ok67 390 Mustang wo/AC w/Dual_belt_alt

4 5/8" diameter

7/16" sheeve width

Ford Service Part Number ID C5AZ-3A733-G

AJ

Ok65-66 289 Ford Fairlane Falcon wo/AC w/Dual_belt_alt

4 5/8" diameter

Ford Service Part Number ID C5AZ-3A733-J

Same as AE pulley

No Image
C1SE-B

Ok64-65 260 289 Mustang w/Eaton_pump

Ok64-65 8cyl Falcon w/Eaton_pump

Ok64-65 289 Fairlane w/Eaton_pump

Ok65 8cyl Tbird w/Eaton_pump

5

4 7/8" diameter

5/16" sheeve width

Ford Service Part Number ID C1SE-3A733-B

No Image
DA

Ok65-67 6cyl Fairlane Mustang Falcon w/AC

4 7/16" diameter

1/2" sheeve width

Ford Service Part Number ID C5DZ-3A733-A

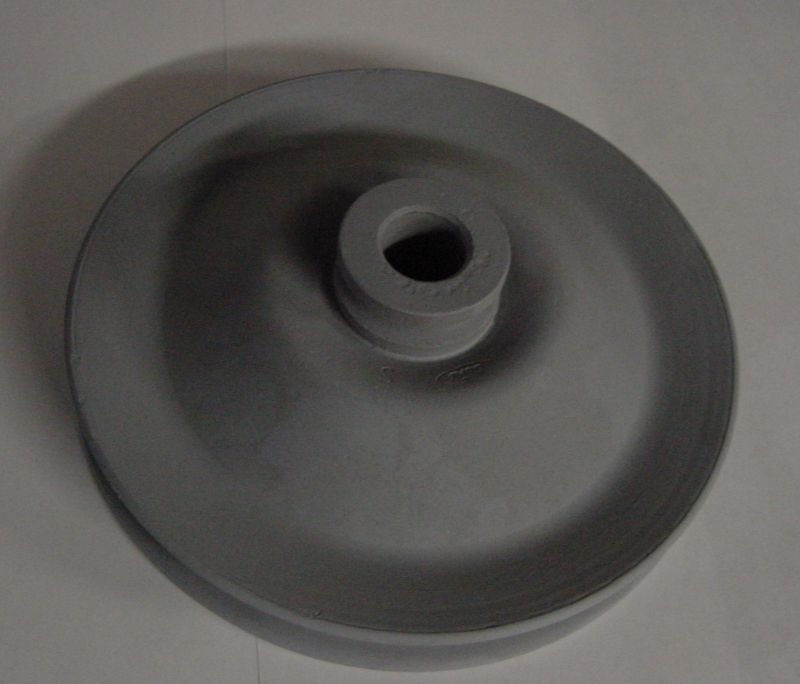

D0AR-A

Ok70 351W Mustang

Ok70 429 Ford w/AC

Ok70-71 8cyl Tbird w/AC

Ok71+ 302 Mustang

Ok71+ 429 Mustang

Ok71 429 Ford exc/PC w/AC

Ok71 429 Torino

Ok72 302 Maverick

Ok72 351cj Torino

Ok72 400-429 PI Torino

5 5/8" diameter

Overall depth : 1.74"

7/16" sheeve width

Ford Service Part Number ID D0AZ-3A733-A

D0AR-A1

? Power steering pulley

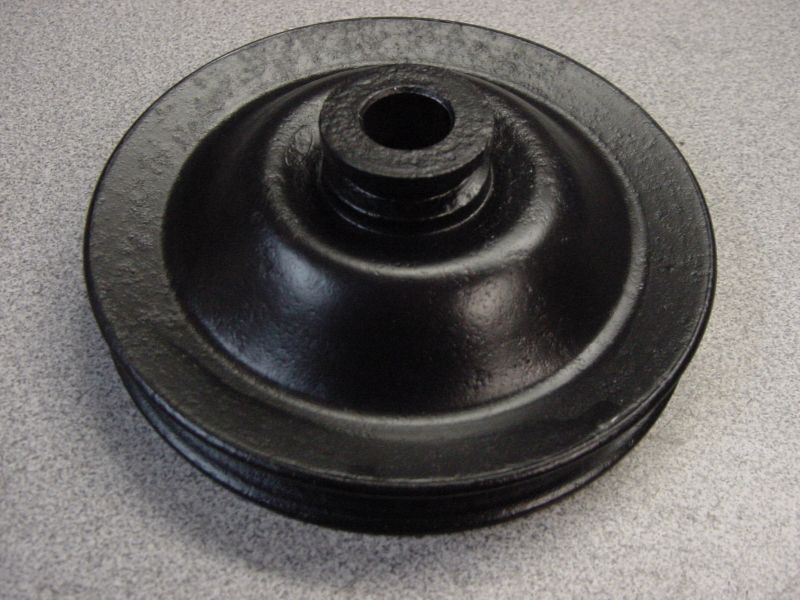

D0AR-B

Ok70 302 351 Ford

Ok70 429 Ford wo/AC

Ok70-71 8cyl Tbird wo/AC

Ok71-72 302 351 400 Ford

Ok71+ 429 Ford exc/PC wo/AC

Ok71+ 429 Ford PC w_wo/AC

Ok72 429 Torino exc/PC wo/AC

Ok72 302 351-2v 400_exc/PC Torino

Ok72 400 429 Tbird wo/AC

5 13/32" Diameter

Overall depth : 1.74"

7/16" sheeve width

Ford Service Part Number ID C9TZ-3A733-D

D0OR-A



Boss 302

Certified70 Boss 302 Mustang

Ok70 429 exc/CJ Torino wo/AC

6 1/2" diameter

7/16" sheeve width

Ford Service Part Number ID D0OZ-3A733-A

D0OR-B

Ok70-71 302 351 Torino

Ok70 429-exc/CJ Torino w/AC

Ok70 429CJ Torino

Ok70 302 351C Mustang

Ok71 Boss_351 Mustang

Ok71+ 302(exc Boss) Mustang

Ok71 302 Maverick

Ok72 429 Torino exc/PC w/AC

6 1/4" diameter

Overall depth : 1.79"

7/16" sheeve width

Ford Service Part Number ID D0OZ-3A733-B



D0OR-C

Ok70-72 6cyl Fairlane

Ok70 250 Mustang

Ok71+ 6cyl Mustang

Ok71+ 250 Maverick

5.437" diameter
Overall depth : 1.30"

5/16" sheeve width

Ford Service Part Number ID D0OZ-3A733-C

D1AE-B

? 71 351 Power steering pulley

5 7/16 " diameter

1 5/8" Overall Depth

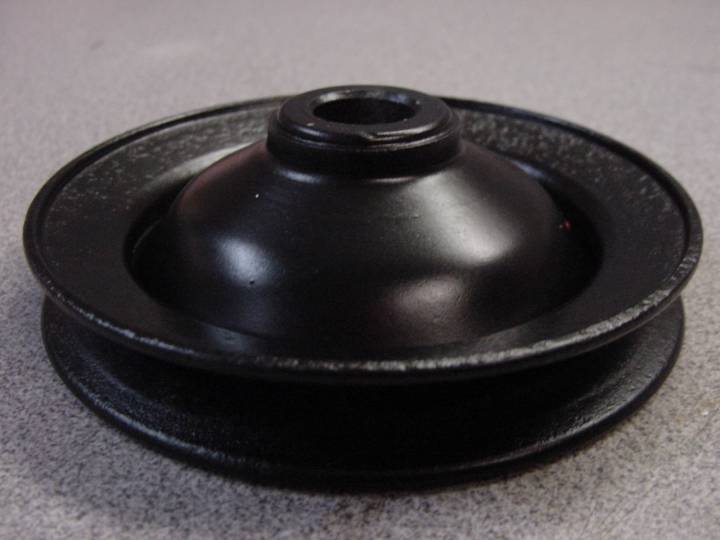

6AA



Ok67 390 428 Ford wo/AC wo/Dual_belt_alt w/superXC

Ok67 8cylTbird w/TE

Ok68 302 Ford wo/AC w/Dual_belt_alt

Ok68-69 390 428 Ford wo/AC

Ok68 302 Fairlane falcon wo/AC w/Dual_belt_alt

Ok68 289 302 Mustang wo/AC wo/Dual_belt_alt

Ok68 390 Fairlane Mustang wo/AC

Ok69 302 351 Ford wo/AC w/Dual_belt_alt

Ok70+ 390 Ford wo/AC

4 21/32 " diameter

7/16" sheeve width

Ford Service Part Number ID C7AZ-3A733-E

7AA

427428 CJ SCJ

Ok65-66 289 352 390 428 Ford w/AC

Ok65-66 289 390 Fairlane w/AC

Ok65-66 289 Mustang w/AC

Ok65-66 8cyl Tbird Falcon w/AC

Ok67 289 Ford wo/AC w/TE

Ok67 390-427 Fairlane w/AC

Ok67-70 390 428 Ford w/AC

Ok67-68 390 Mustang w/AC

Ok67 8cyl Tbird wo/TE

Ok68 390 Fairlane w/AC

Certified68-70 428CJ Mustang w/AC

Ok68-68 390 Tbird

Ok69 302 351 Torino Mustang wo/AC wo/Dual_belt_alt

Ok69 302 351 390 428 Torino Mustang w/AC

Ok69-70 8cyl Falcon w/AC

Ok71+ 390 Ford w/AC

Ok70 390 428 Mustang w/AC

5 1/4" Diameter

Ford Service Part Number ID C7AZ-3A733-A

7AA

7AB

427

Ok65-67 352 390 428 Ford wo/AC w/Dual_belt_alt

Ok65-66 390 Fairlane wo/AC w/Dual_belt_alt

Ok65-66 8cyl Tbird wo/AC w/TE

Ok67 390 427 Fairlane wo/AC w/Dual_belt_alt

Ok67 390 Mustang wo/AC w/Dual_belt_alt

5 7/16 " diameter

7/16" sheeve width

Ford Service Part Number ID C5AZ-3A733-G

7AC

Ok67 289 Shelby GT-350

Ford Master catalog reports this pulley shouldbe replaced by pulley 7AA --> C7AZ-3A733-A

7" diameter





7AD

Ok67 289 Ford Fairlane Mustang Falcon w/AC

Ok68 302 Ford Fairlane w/AC

Ok68 289 302 Mustang Falcon w/AC

Ok69 302 351 Ford w/AC

5 " diameter

Overall depth : 1.22"

3/8" sheeve width

Ford Service Part Number ID C7AZ-3A733-D

7AE



Ok67 289 Ford wo/AC wo/Dual_belt_alt

Ok68 289 302 Ford Falcon wo/AC wo/TE

Ok68 302 Fairlane wo/AC wo/Dual_belt_alt

Ok68 289 302 Mustang wo/AC wo/Dual_belt_alt

Ok69 302 351 Ford wo/AC wo/TE

Ok69-70 8cyl Falcon wo/AC wo/Dual_belt_alt

4 5/8" diameter

Overall depth : 1.20"

5/16" sheeve width

Ford Service Part Number ID C7AZ-3A733-F

7AE

80B



428 CJ SCJ

Ok68 428 Fairlane

Ok69 390 428 Fairlane wo/AC

Ok69 302 351 Mustang wo/AC w/Dual_belt_alt

Ok69 302 351 Ford wo/AC w/Dual_belt_alt

?69 Boss 302 Mustang

Certified69-70 390 428CJ Mustang wo/AC

Ok69-70 8cyl Falcon

Ok70 428 Ford wo/AC

5 1/2" diameter

7/16" sheeve width

Ford Service Part Number ID C9OZ-3A733-B

8SA

Ok69 429 Ford

Ok68-69 429 TBird

4 5/8" Diameter

Overall depth : 1.12"

7/16" sheeve width

Ford Service Part Number ID C8SZ-3A733-A

90A

Ok69 250 Mustang

Ok69 6cyl Fairlane

4 7/8" Diameter

5/16" sheeve width

Ford Service Part Number ID C9OZ-3A733-A

No Image

90B

Boss 302Boss 429

Certified69 Boss 302 Mustang

Certified69-70 Boss 429 Mustang

6 3/8" Diameter

5/16" sheeve width

Ford Service Part Number ID C9OZ-3A733-C

Other FORD Pulleys

C2OF-10130-A

?Generator Pulley

1 groove

with fan

No Image

C3OF-10130-B

289 HIPO

Ok63-64 289 HiPo Generator Pulley



1 groove

4.32" inch dia.

No Image

C5AF-10A352-C

289 HIPO

Ok65 289 HiPo Alt. Pulley b4_1-april-65



1 groove

3 7/8" inch dia.

C5AF-10A352-H

289 HIPO

Ok65-67 289 HiPo Alt. Pulley after_1-april-65



1 groove

3 7/8" inch dia.

C5AF-10A352-L

?Alternator Pulley



1 groove



C6AE-9B447-C

Ok66 289 Ford &Mustang with California Emissions, Air-Conditioning

uses 1/2" belt

4.92" overall dia.

C7ZE-9B447-A

Ok67 289 Smog pump pulley



C8AE-9C480-A

428 CJ SCJ

Ok68-70 428CJ SCJ Smog pump pulley




C8AE-9C480-A

C9AF-10A352-C

428 CJ SCJ

Ok69-70 428CJ SCJ Alternator pulley



2 Grooves

Ford Service Part Number ID C5AZ-10344-L

D00E-9C480-A

Ok70 429 Smog pump pulley


No Image
D0SE-9C480-A

Ok70-71 429CJ & SCJ Smog pulley



D0ZE-9C480-A



Boss 302

Ok70 BOSS 302 Smog Pump pulley





No casting #

428 CJ SCJ

?70 428 AC idler Pulley

Fixed type mounting

Ford Service Part Number ID D0AZ-8678-C

no casting #

?67 289 AC idler bracket & pulley

Use with C7AA-2888-G -

C7AA-2882-L and Idler 2

no casting #

?67 289 AC idler bracket & pulley

Use with C7AA-2888-G -

C7AA-2882-L and Idler 1

Application

legend

  Shelby Mustang 289 HIPO 428 CJ SCJ Boss 429 Boss 302 427

Certified Confirmed App

Ok Unconfirmed App

? Unknown App

App Discrepancy

Pulley Information Appeal

It it proving incredibly difficult to find accurate application information about Ford pulleys. One book may say this pulley is such app while another book or website may completely contradict that same info. Posting accurate information about pulleys is proving very frustrating to say the least cause I don't know what source to trust. I would appreciate any advice on the matter and/or any references that could help with pulley applications.

Thanks

webadmin@mustangtek.com
